The diesel generator exhaust pipe routes through the roof via a ventilated NFPA-approved roof thimble sealed with flash and counter flashing. An exhaust muffler is suspended from the structure above using five-eighth-inch diameter rods with optional vibration isolation, and hangers may require rollers to accommodate pipe expansion. The horizontal run features a drip leg with a valved hose connection and cap matching the main exhaust pipe diameter, pitched down for drainage. Clearances maintain a minimum distance of six inches from combustible wall materials, and terminations include a bird screen with a minimum quarter-inch mesh cut off at a 45-degree angle alongside a flapper valve and rain cap.

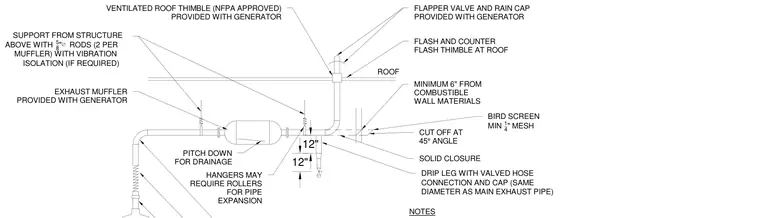

ROOF NOTES 12" 12" FLAPPER VALVE AND RAIN CAP PROVIDED WITH GENERATOR VENTILATED ROOF THIMBLE (NFPA APPROVED) PROVIDED WITH GENERATOR SUPPORT FROM STRUCTURE ABOVE WITH 5_ 8 " RODS (2 PER ∅ MUFFLER) WITH VIBRATION ISOLATION (IF REQUIRED) EXHAUST MUFFLER PROVIDED WITH GENERATOR PITCH DOWN FOR DRAINAGE HANGERS MAY REQUIRE ROLLERS FOR PIPE EXPANSION FLASH AND COUNTER FLASH THIMBLE AT ROOF MINIMUM 6" FROM COMBUSTIBLE WALL MATERIALS BIRD SCREEN MIN 1_ 4 " MESH CUT OFF AT 45° ANGLE SOLID CLOSURE DRIP LEG WITH VALVED HOSE CONNECTION AND CAP (SAME DIAMETER AS MAIN EXHAUST PIPE)
