A round rigid duct connects to an insulated sheet metal trunk duct via a spin-in fitting, secured with number 10 by 3/4-inch self-tapping cadmium-plated sheet metal screws while prohibiting pop rivets. A balance damper with a locking quadrant is installed within the assembly for airflow control. The rigid duct is wrapped in 1 1/2-inch fiberglass duct wrap with a foil facing. Hanger straps support the main duct assembly with all straps pulled tight against the duct and support members.

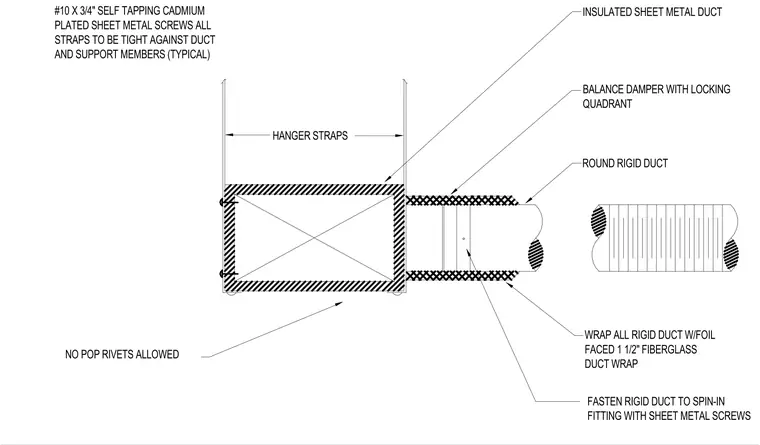

INSULATED SHEET METAL DUCT BALANCE DAMPER WITH LOCKING QUADRANT ROUND RIGID DUCT WRAP ALL RIGID DUCT W/FOIL FACED 1 1/2" FIBERGLASS DUCT WRAP FASTEN RIGID DUCT TO SPIN-IN FITTING WITH SHEET METAL SCREWS NO POP RIVETS ALLOWED #10 X 3/4" SELF TAPPING CADMIUM PLATED SHEET METAL SCREWS ALL STRAPS TO BE TIGHT AGAINST DUCT AND SUPPORT MEMBERS (TYPICAL) HANGER STRAPS
