Landscape · L-ZZZCV

Drip Remote Control Valve Assembly in Valve Box

Materials

Connections

About this detail

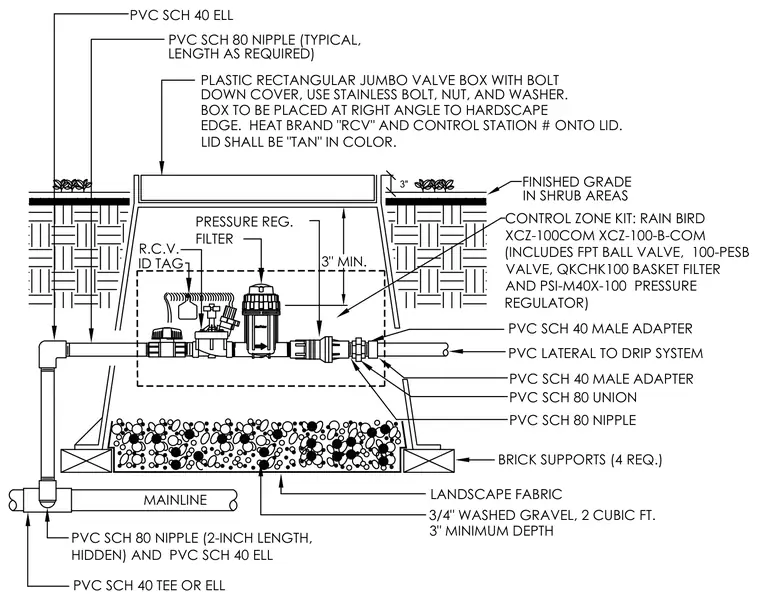

A remote control valve assembly for a landscape drip irrigation system is housed within a plastic rectangular jumbo valve box with a bolt-down cover. The box is placed at a right angle to the hardscape edge and rests on three-quarter-inch washed gravel over landscape fabric, supported by four brick supports. The assembly connects to the mainline via polyvinyl chloride schedule forty tees, elbows, and schedule eighty nipples, incorporating a control zone kit with a female pipe thread ball valve, PESB valve, basket filter, and pressure regulator. A polyvinyl chloride schedule eighty union and male adapters link the system to the drip lateral, while a tan lid heat-branded with an identification tag and control station number secures the top at finished grade in shrub areas.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
