Landscape · L-ZXF6G

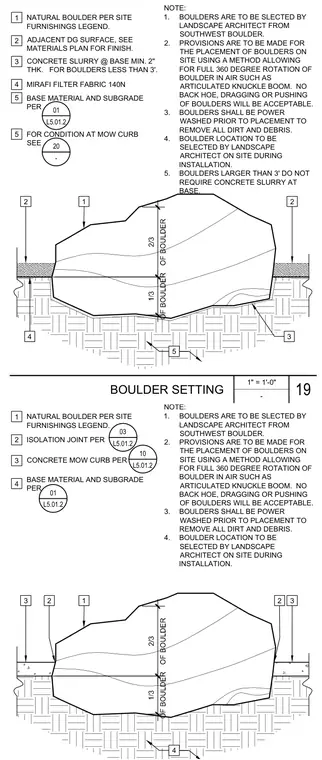

Natural Boulder Setting and Mow Curb Details

Materials

Elements

About this detail

Natural boulders are set with one-third of their height embedded in subgrade and two-thirds exposed, surrounded by adjacent decomposed granite or mow curb assemblies. Boulders smaller than three feet require a minimum two-inch thick concrete slurry at the base, while larger boulders do not. Non-woven geotextile filter fabric sits beneath the base material and subgrade. Boulders are specified to be power-washed and handled with equipment allowing full three-hundred-sixty-degree rotation during placement.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
