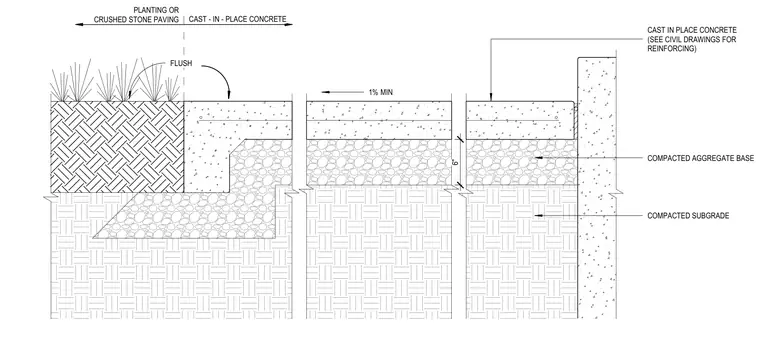

Cast-in-place concrete paving rests on a six-inch compacted aggregate base and compacted subgrade, featuring a one percent minimum slope. The concrete edge maintains a flush transition with adjacent planting or crushed stone paving. Reinforcement for the cast-in-place concrete is specified per civil drawings.
CAST IN PLACE CONCRETE (SEE CIVIL DRAWINGS FOR REINFORCING) COMPACTED AGGREGATE BASE COMPACTED SUBGRADE 1% MIN FLUSH PLANTING OR CRUSHED STONE PAVING CAST - IN - PLACE CONCRETE 6"
