Landscape · L-ZV4RY

Planting Layout

Elements

About this detail

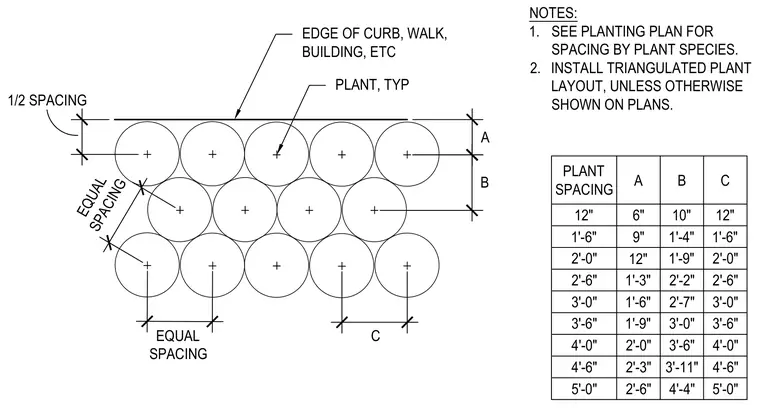

Triangulated planting layout and standard offset distances from building edges, curbs, and walks. Plants are spaced evenly in staggered rows with specific set-backs represented by dimensions A, B, and C based on the plant species spacing requirements. A half-spacing dimension is maintained from the edge of walks or curbs to the first row of plants. An accompanying schedule provides the exact offset values A, B, and C corresponding to plant spacing dimensions ranging from 12 inches to 5 feet.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
