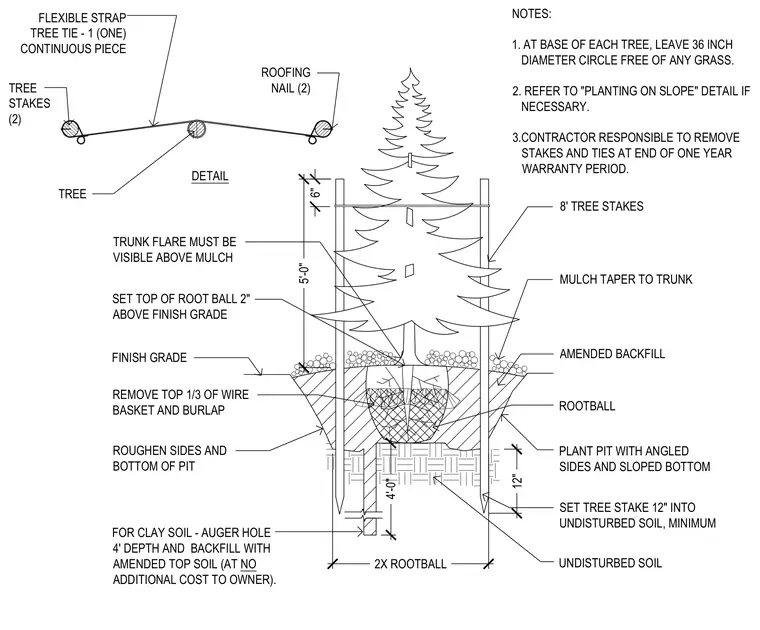

Standard installation method for a tree planting pit featuring angled sides, a sloped bottom, and an optional four-foot auger hole for clay soil conditions. The root ball is set two inches above the finish grade with the trunk flare remaining visible above the mulch layer, and the top one-third of the wire basket and burlap are removed. Amended backfill is placed around the root ball while sides and bottom of the pit are roughened. Two eight-foot tree stakes are driven twelve inches into undisturbed soil and secured to the trunk using a continuous flexible tree tie fastened with two roofing nails.
MULCH TAPER TO TRUNK PLANT PIT WITH ANGLED SIDES AND SLOPED BOTTOM SET TREE STAKE 12" INTO UNDISTURBED SOIL, MINIMUM AMENDED BACKFILL UNDISTURBED SOIL ROOTBALL REMOVE TOP 1/3 OF WIRE BASKET AND BURLAP TRUNK FLARE MUST BE VISIBLE ABOVE MULCH SET TOP OF ROOT BALL 2" ABOVE FINISH GRADE FINISH GRADE ROUGHEN SIDES AND BOTTOM OF PIT FOR CLAY SOIL - AUGER HOLE 4' DEPTH AND BACKFILL WITH AMENDED TOP SOIL (AT NO ADDITIONAL COST TO OWNER). 5'-0" 6" 4'-0" 12" 2X ROOTBALL 8' TREE STAKES ROOFING NAIL (2) TREE FLEXIBLE STRAP TREE TIE - 1 (ONE) CONTINUOUS PIECE TREE STAKES (2) DETAIL NOTES: 1. AT BASE OF EACH TREE, LEAVE 36 INCH DIAMETER CIRCLE FREE OF ANY GRASS. 2. REFER TO "PLANTING ON SLOPE" DETAIL IF NECESSARY. 3.CONTRACTOR RESPONSIBLE TO REMOVE STAKES AND TIES AT END OF ONE YEAR WARRANTY PERIOD.
