Structural · L-ZTX9T

Gate Jamb Hinge Connection at HSS Frame

Materials

Steel Metal (misc.)

Elements

Columns Connections / Plates

Connections

HSS Connection Welded Connection

About this detail

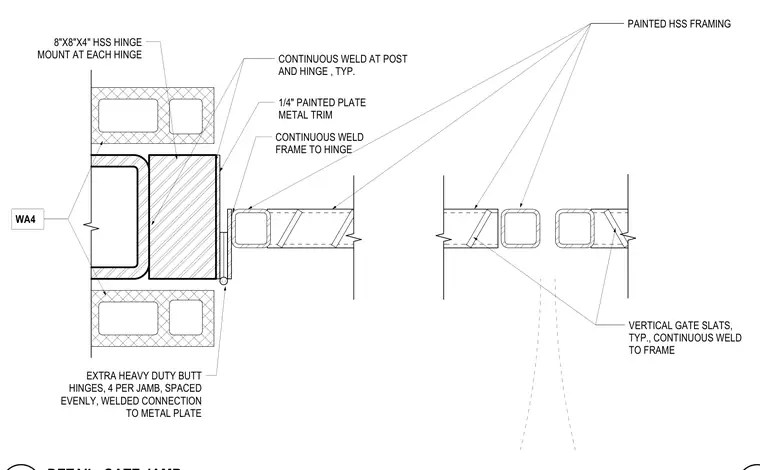

The gate assembly consists of painted hollow structural section framing with vertical gate slats welded continuously to the frame. An eight-inch by eight-inch by four-inch hollow structural section hinge mount secures to each hinge location with a continuous weld at the post. Extra heavy-duty butt hinges, numbering four per jamb and spaced evenly, attach via a welded connection to a one-quarter-inch painted metal trim plate.
