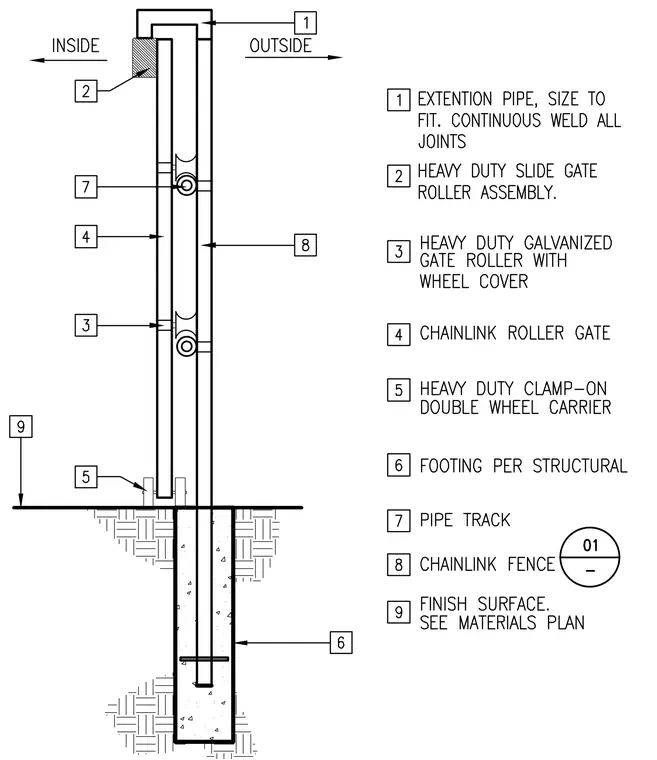

A vertical section through a rolling chain link gate assembly anchored in a cast-in-place concrete footing. The gate frame incorporates a heavy duty slide gate roller assembly positioned at the inside face, alongside a heavy duty galvanized gate roller with wheel cover and a heavy duty clamp-on double wheel carrier at the base. The structural support consists of an extension pipe at the top with continuous welds at all joints, supporting a pipe track and chain link fence. The entire assembly sits above a finish surface detailed per the materials plan and is anchored into a concrete footing sized per structural drawings.
