A tree grate is supported by a galvanized steel angle frame anchored with a Nelson stud welded to the frame and embedded in concrete. The tree rootball is secured using a Platipus-Anchors D-Man anchor system installed per manufacturer specifications within the planting media. Surrounding paving and planting media are detailed to match the material plan and specifications.

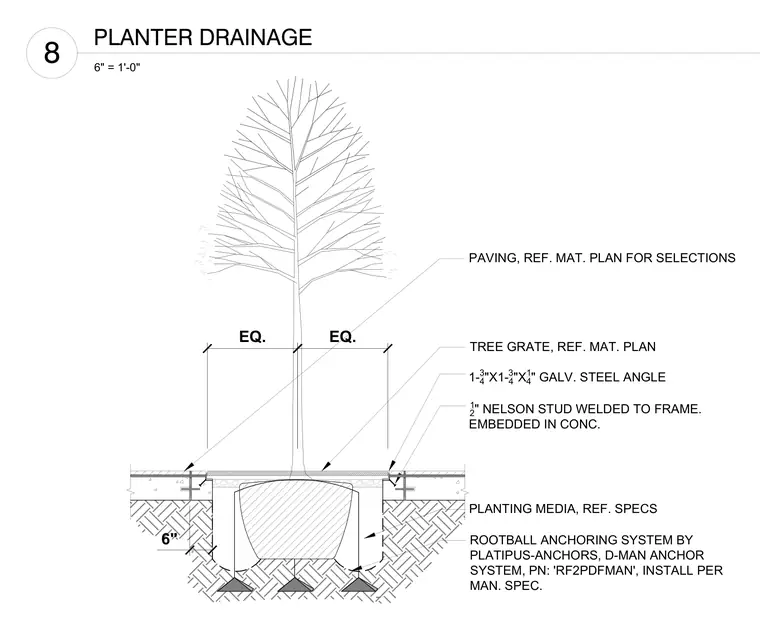

PLANTER DRAINAGE 6" = 1'-0" 8 ROOTBALL ANCHORING SYSTEM BY PLATIPUS-ANCHORS, D-MAN ANCHOR SYSTEM, PN: 'RF2PDFMAN', INSTALL PER MAN. SPEC. TREE GRATE, REF. MAT. PLAN 1 2 " NELSON STUD WELDED TO FRAME. EMBEDDED IN CONC. 1- 3 4 "X1- 3 4 "X 1 4 " GALV. STEEL ANGLE PLANTING MEDIA, REF. SPECS EQ. EQ. 6" PAVING, REF. MAT. PLAN FOR SELECTIONS
