Cast-in-place concrete stairs feature an 18-inch tread with a 6-inch riser and a 1/4-inch bullnose at the nosing. A number 4 rebar is placed at the stair nosing for edge reinforcement, while additional reinforcing is provided per structural drawings. A 1/2-inch expansion joint separates the stair structure from adjacent surfaces. The stair assembly bears on a compacted crushed aggregate base over compacted subgrade.

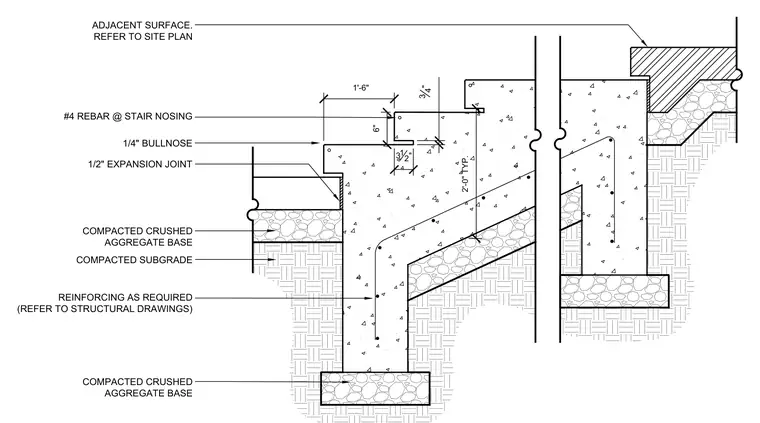

1/2" EXPANSION JOINT 1/4" BULLNOSE ADJACENT SURFACE. REFER TO SITE PLAN 1'-6" 6" 3 4" 312" 2'-0" TYP. COMPACTED CRUSHED AGGREGATE BASE COMPACTED SUBGRADE COMPACTED CRUSHED AGGREGATE BASE REINFORCING AS REQUIRED (REFER TO STRUCTURAL DRAWINGS) #4 REBAR @ STAIR NOSING
