Paver on Pedestal

Materials

Elements

Roofs Floors / Slabs Arches Insulation Roof / Floor Openings

About this detail

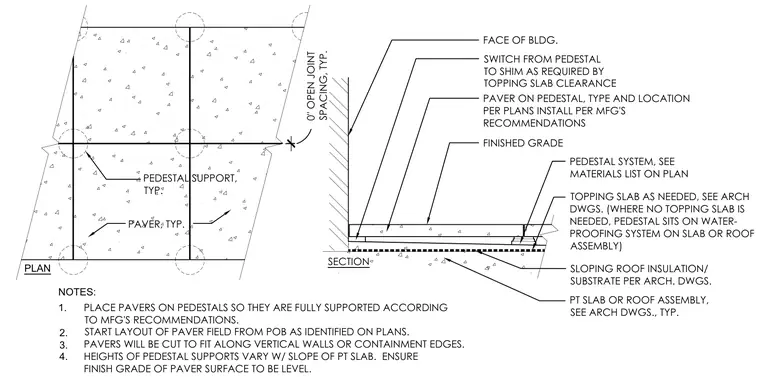

A paver on pedestal installation features both plan and section views adjacent to a building wall. The assembly sits atop a post-tensioned slab or roof structure overlaid with sloping roof insulation and a waterproofing system. Adjustable pedestal supports or shims carry the pavers to ensure a level finished grade despite substrate slopes. Open joint spacing is maintained between units, and layout starts from a designated point of beginning with pavers cut to fit containment edges.
