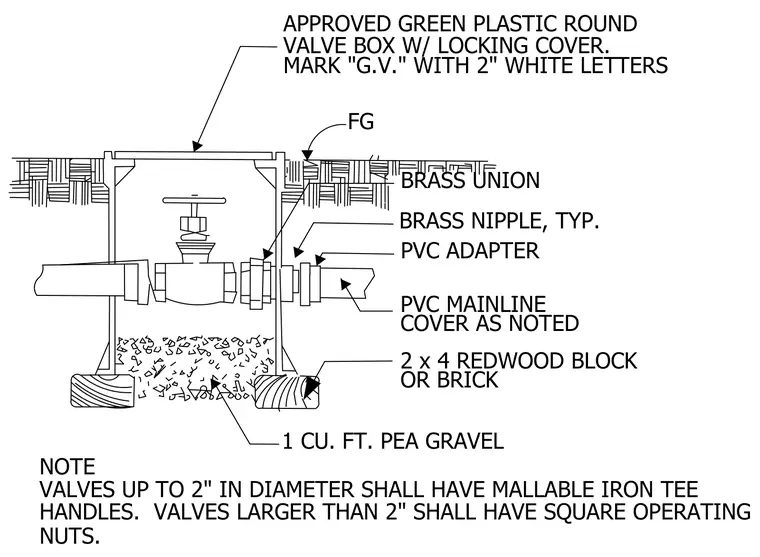

An approved green plastic round valve box with a locking cover marked with two-inch white letters reading G.V. encloses the gate valve assembly. The gate valve connects to the PVC mainline via a brass union, typical brass nipple, and PVC adapter. The entire box rests on a one cubic foot bed of pea gravel supported by two-by-four redwood blocks or brick. Valves up to two inches in diameter require malleable iron tee handles, while valves larger than two inches require square operating nuts.
APPROVED GREEN PLASTIC ROUND VALVE BOX W/ LOCKING COVER. MARK "G.V." WITH 2" WHITE LETTERS FG BRASS NIPPLE, TYP. BRASS UNION PVC ADAPTER PVC MAINLINE COVER AS NOTED 2 x 4 REDWOOD BLOCK OR BRICK 1 CU. FT. PEA GRAVEL NOTE VALVES UP TO 2" IN DIAMETER SHALL HAVE MALLABLE IRON TEE HANDLES. VALVES LARGER THAN 2" SHALL HAVE SQUARE OPERATING NUTS.
