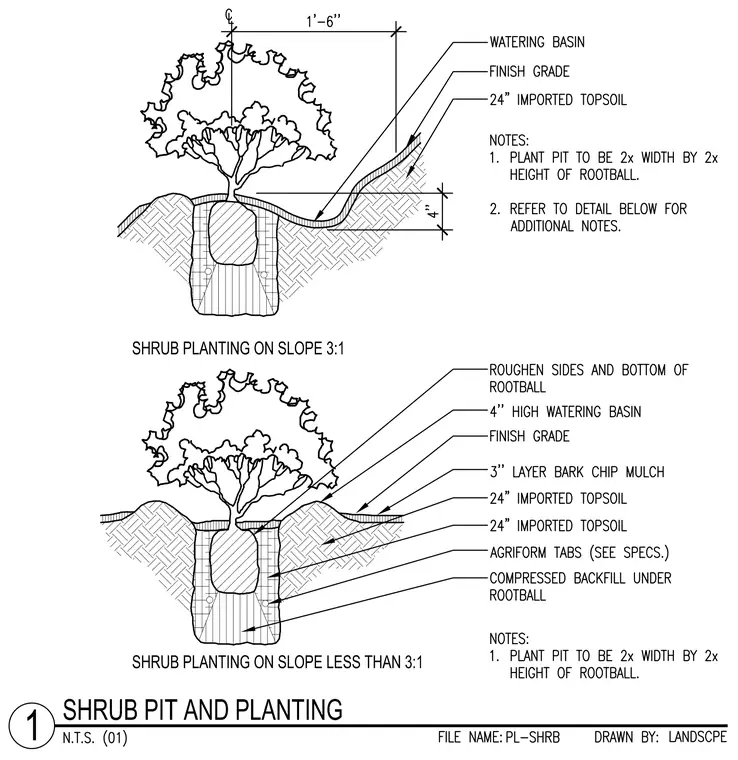

Shrub planting details illustrate installation requirements on slopes and flat surfaces with imported topsoil and mulch layers. The plant pit requires excavation to twice the width and twice the height of the rootball, with compressed backfill placed underneath the rootball. A four-inch high watering basin is formed at the finish grade surrounding the shrub. Additional components include a three-inch layer of bark chip mulch and Agriform fertilizer tablets placed per specifications.
1 SHRUB PIT AND PLANTING SHRUB PLANTING ON SLOPE 3:1 SHRUB PLANTING ON SLOPE LESS THAN 3:1
