Landscape · L-ZFFQH

Rain Garden and Sidewalk Edge Detail

Elements

About this detail

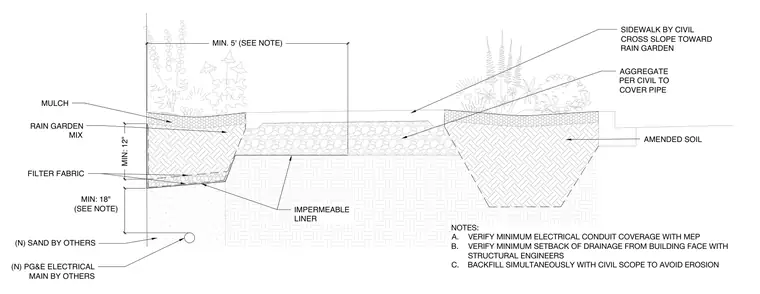

A rain garden section adjacent to a sidewalk features amended soil, rain garden mix, and a top layer of mulch. The basin is lined with a filter fabric and an impermeable liner over aggregate, with a minimum 12-inch depth. A drainage pipe is bedded in sand below with a minimum 18-inch cover, adjacent to an electrical main by others. The civil scope sidewalk slopes toward the rain garden with a minimum 5-foot setback. Notes require verifying minimum electrical conduit coverage with MEP, setback from the building face with structural engineers, and backfilling simultaneously with civil scope to avoid erosion.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
