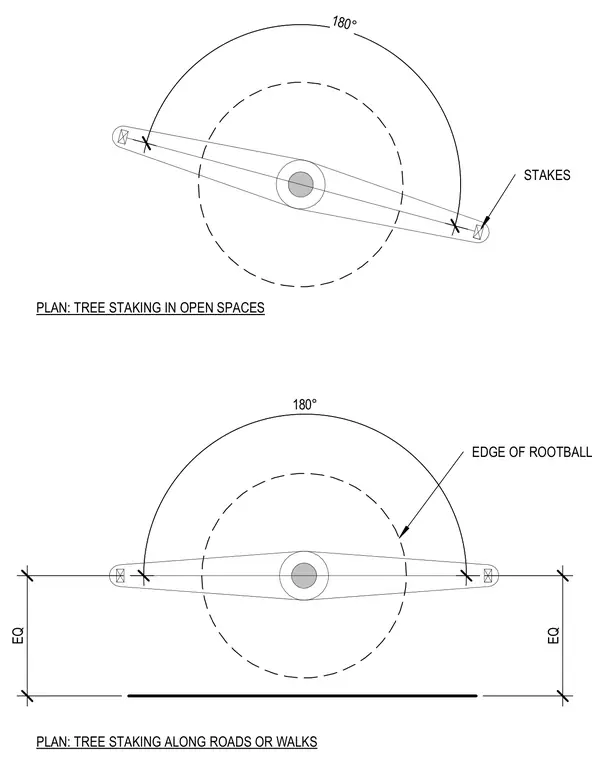

Tree staking configurations are detailed for both open space settings and installations parallel to roads or walks. Two plan diagrams indicate the placement of stakes relative to the edge of the rootball. An angular dimension of 180 degrees governs the stake placement around the trunk, and equal spacing dimensions establish offset clearances from adjacent walkways or curbs.
PLAN: TREE STAKING ALONG ROADS OR WALKS PLAN: TREE STAKING IN OPEN SPACES 180° 180° STAKES EQ EQ EDGE OF ROOTBALL
