A Bowsmith emitter connects to a PVC lateral line buried twelve inches minimum below finished grade. One quarter inch poly tubing with a maximum length of five feet extends from the emitter to the shrub rootball centerline. A Salco bug cap protects the end of the tubing. A six-inch valve box houses a self-flushing end cap over a six-inch depth of pea gravel.

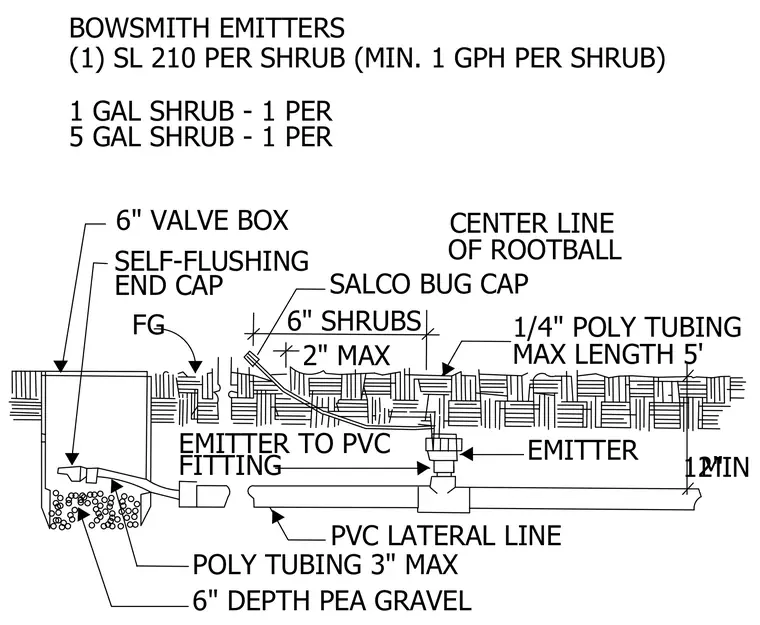

BOWSMITH EMITTERS (1) SL 210 PER SHRUB (MIN. 1 GPH PER SHRUB) 1 GAL SHRUB - 1 PER 5 GAL SHRUB - 1 PER 6" VALVE BOX SELF-FLUSHING CENTER LINE OF ROOTBALL SALCO BUG CAP FG 6" SHRUBS 2" MAX 1/4" POLY TUBING MAX LENGTH 5' 12" MIN EMITTER EMITTER TO PVC FITTING PVC LATERAL LINE POLY TUBING 3" MAX 6" DEPTH PEA GRAVEL END CAP
