A six-inch cast-in-place reinforced concrete slab with integral color is placed over a compacted aggregate base and compacted subgrade sized per civil engineering documents. Reinforcing consists of number four rebar spaced at twelve inches on center each way per structural requirements.

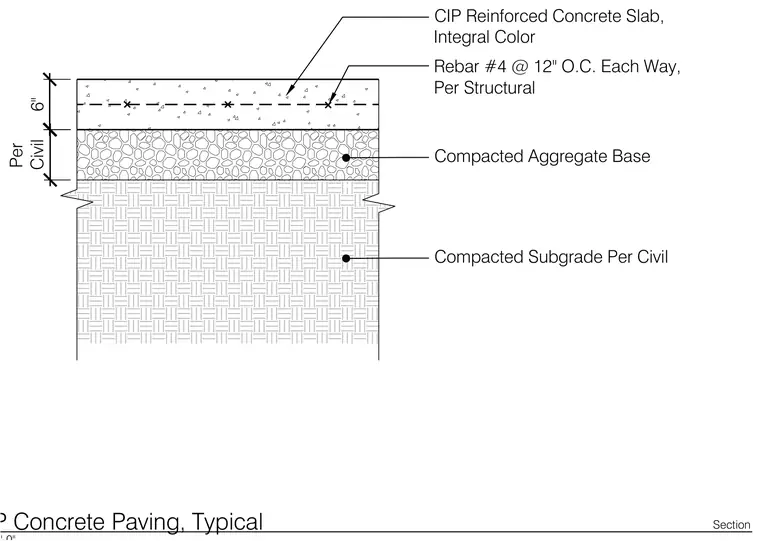

Per Civil CIP Reinforced Concrete Slab, Integral Color Compacted Aggregate Base Rebar #4 @ 12" O.C. Each Way, Per Structural 6" Compacted Subgrade Per Civil Section CIP Concrete Paving, Typical
