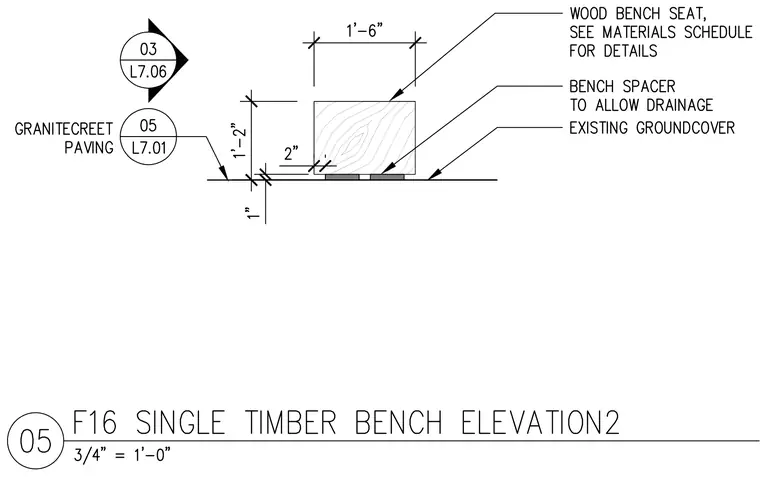

A single wood bench seat with a width of one foot six inches and a height of one foot two inches sits on bench spacers to allow drainage above the existing groundcover. The assembly stands adjacent to granitecreet paving with a one-inch vertical clearance transition. Detailed material specifications for the wood bench seat are referenced in the materials schedule.
