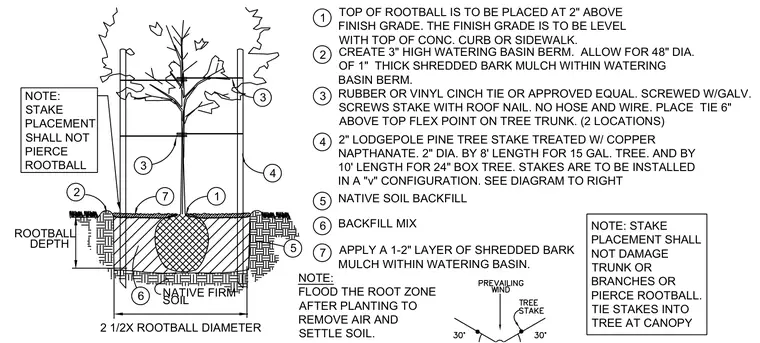

The rootball is set at two inches above finish grade on firm native soil, with the planting pit excavated to two and one-half times the rootball diameter and backfilled with a soil mix. A three-inch high watering basin berm is created around the tree and covered with a one-inch to two-inch layer of shredded bark mulch. Two two-inch diameter lodgepole pine tree stakes, treated with copper naphthenate, are installed in a V-configuration relative to the prevailing wind and secured to the trunk using rubber or vinyl cinch ties fastened with galvanized screws. The root zone is flooded after planting to remove air pockets and settle the soil, and stake placement avoids damaging branches or piercing the rootball.
2 1/2X ROOTBALL DIAMETER SOIL NATIVE FIRM ROOTBALL DEPTH TOP OF ROOTBALL IS TO BE PLACED AT 2" ABOVE FINISH GRADE. THE FINISH GRADE IS TO BE LEVEL WITH TOP OF CONC. CURB OR SIDEWALK. 2 CREATE 3" HIGH WATERING BASIN BERM. ALLOW FOR 48" DIA. OF 1" THICK SHREDDED BARK MULCH WITHIN WATERING BASIN BERM. 1 2 RUBBER OR VINYL CINCH TIE OR APPROVED EQUAL. SCREWED W/GALV. SCREWS STAKE WITH ROOF NAIL. NO HOSE AND WIRE. PLACE TIE 6" ABOVE TOP FLEX POINT ON TREE TRUNK. (2 LOCATIONS) 3 2" LODGEPOLE PINE TREE STAKE TREATED W/ COPPER NAPTHANATE. 2" DIA. BY 8' LENGTH FOR 15 GAL. TREE. AND BY 10' LENGTH FOR 24" BOX TREE. STAKES ARE TO BE INSTALLED IN A "v" CONFIGURATION. SEE DIAGRAM TO RIGHT 4 NATIVE SOIL BACKFILL 5 5 6 BACKFILL MIX 6 NOTE: FLOOD THE ROOT ZONE AFTER PLANTING TO REMOVE AIR AND SETTLE SOIL. 3 APPLY A 1-2" LAYER OF SHREDDED BARK MULCH WITHIN WATERING BASIN. 7 1 7 3 4 NOTE: STAKE PLACEMENT SHALL NOT DAMAGE TRUNK OR BRANCHES OR PIERCE ROOTBALL. TIE STAKES INTO TREE AT CANOPY NOTE: STAKE PLACEMENT SHALL NOT PIERCE ROOTBALL
