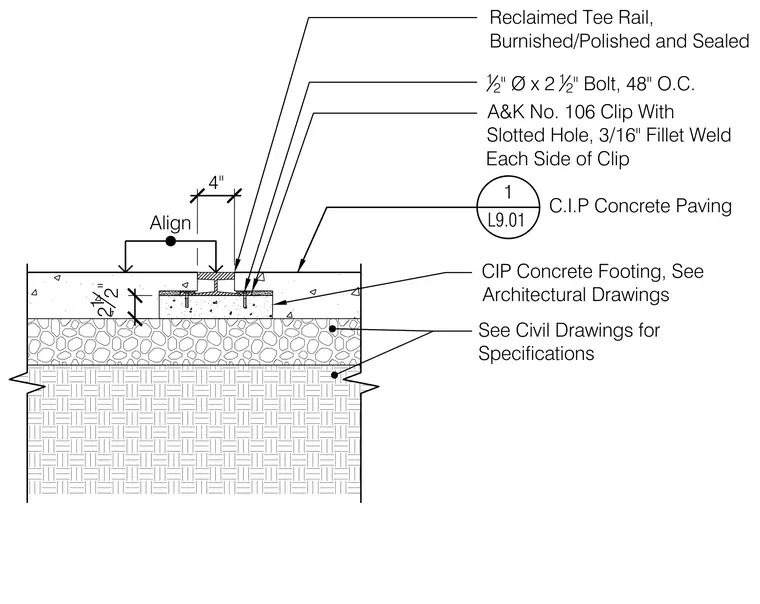

A burnished, polished, and sealed reclaimed tee rail is anchored into a cast-in-place concrete paving system. The tee rail secures with an A&K number 106 clip featuring a slotted hole, welded with a three-sixteenths-inch fillet weld on each side of the clip. One-half-inch diameter by two-and-one-half-inch bolts secure the assembly at forty-eight inches on center. The assembly bears on a cast-in-place concrete footing supported by compacted sub-base layers specified on civil drawings.
See Civil Drawings for Specifications 2 1 2" 4" Align CIP Concrete Footing, See Architectural Drawings Reclaimed Tee Rail, Burnished/Polished and Sealed 1 L9.01 C.I.P Concrete Paving 12 " Ø x 2 12 " Bolt, 48" O.C. A&K No. 106 Clip With Slotted Hole, 3/16" Fillet Weld Each Side of Clip
