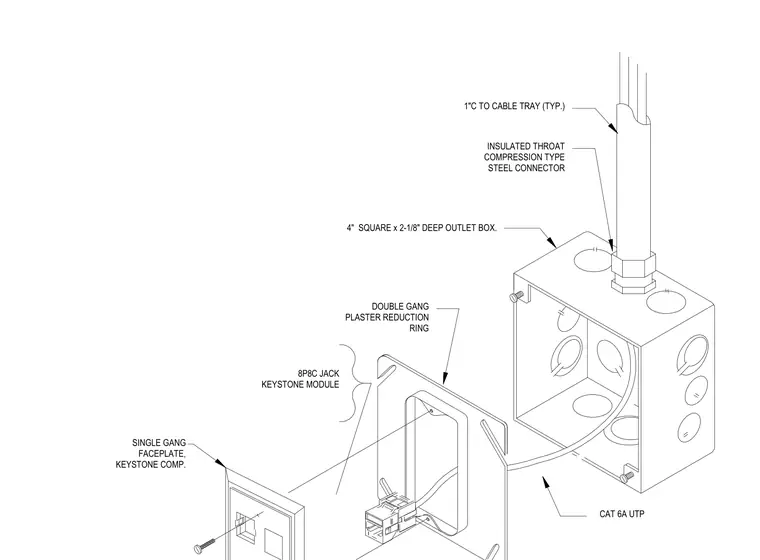

This assembly details a four-inch square by two-and-one-eighth-inch deep outlet box connected to a one-inch conduit running to a cable tray. The conduit secures to the box using an insulated throat compression type steel connector. A double gang plaster reduction ring attaches to the outlet box to receive the data termination components. Cat 6A unshielded twisted pair cabling routes into the box and terminates at an 8P8C jack Keystone module, which snaps into a single gang faceplate with Keystone compatibility.
CAT 6A UTP SINGLE GANG FACEPLATE, KEYSTONE COMP. DOUBLE GANG PLASTER REDUCTION RING INSULATED THROAT COMPRESSION TYPE STEEL CONNECTOR 1"C TO CABLE TRAY (TYP.) 4" SQUARE x 2-1/8" DEEP OUTLET BOX. 8P8C JACK KEYSTONE MODULE
