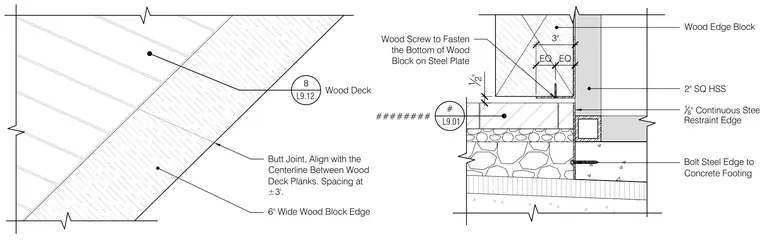

A six-inch wide wood edge block rests on a steel plate and is secured with wood screws, maintaining a butt joint aligned with the centerline between wood deck planks at approximately three-foot spacing. The wood blocking bears above a one-eighth-inch continuous steel restraint edge and a two-inch square hollow structural section. The steel edge is bolted directly to the underlying concrete footing.
3" EQ EQ 2" SQ HSS 18 " Continuous Steel Restraint Edge Bolt Steel Edge to Concrete Footing Wood Screw to Fasten the Bottom of Wood Block on Steel Plate 12" # L9.01 ######## Wood Edge Block 6" Wide Wood Block Edge Butt Joint, Align with the Centerline Between Wood Deck Planks. Spacing at ±3'. 8 L9.12 Wood Deck
