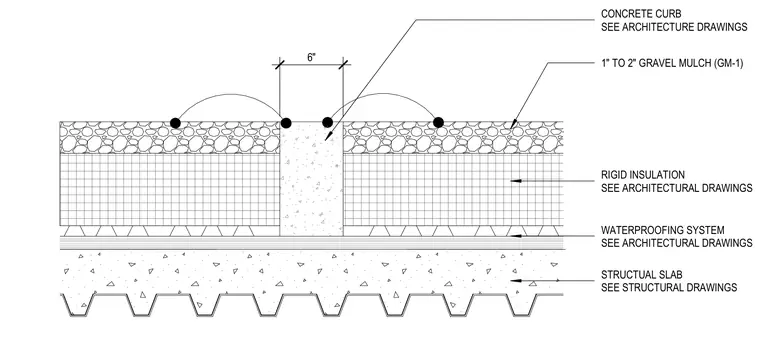

A six-inch wide concrete curb is set upon a waterproofing system and rigid insulation over a structural steel deck slab. One to two inches of gravel mulch, designated as GM-1, flanks both sides of the curb. The waterproofing system and structural slab are detailed per architectural and structural drawings respectively.
1" TO 2" GRAVEL MULCH (GM-1) RIGID INSULATION SEE ARCHITECTURAL DRAWINGS WATERPROOFING SYSTEM SEE ARCHITECTURAL DRAWINGS STRUCTUAL SLAB SEE STRUCTURAL DRAWINGS CONCRETE CURB SEE ARCHITECTURE DRAWINGS 6"
