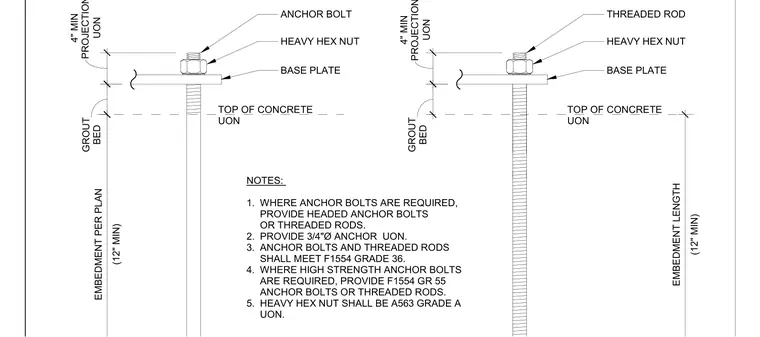

Standard base plate connections utilize anchor bolts or threaded rods set into concrete. The assembly includes a base plate secured by heavy hex nuts over a bed of grout above the top of concrete. Anchor bolts and threaded rods require a minimum embedment length of twelve inches per plan and a minimum projection of four inches unless otherwise noted. Standard anchors are specified as three-quarters of an inch in diameter meeting ASTM F1554 Grade 36, with high-strength applications requiring Grade 55. Heavy hex nuts conform to ASTM A563 Grade A unless otherwise noted.
THREADED ROD HEAVY HEX NUT (12" MIN) EMBEDMENT LENGTH TOP OF CONCRETE UON UON 4" MIN PROJECTION BED GROUT BASE PLATE ANCHOR BOLT HEAVY HEX NUT TOP OF CONCRETE UON BED GROUT BASE PLATE UON 4" MIN PROJECTION (12" MIN) EMBEDMENT PER PLAN NOTES: 1. WHERE ANCHOR BOLTS ARE REQUIRED, PROVIDE HEADED ANCHOR BOLTS OR THREADED RODS. 2. PROVIDE 3/4"Ø ANCHOR UON. 3. ANCHOR BOLTS AND THREADED RODS SHALL MEET F1554 GRADE 36. 4. WHERE HIGH STRENGTH ANCHOR BOLTS ARE REQUIRED, PROVIDE F1554 GR 55 ANCHOR BOLTS OR THREADED RODS. 5. HEAVY HEX NUT SHALL BE A563 GRADE A UON.
