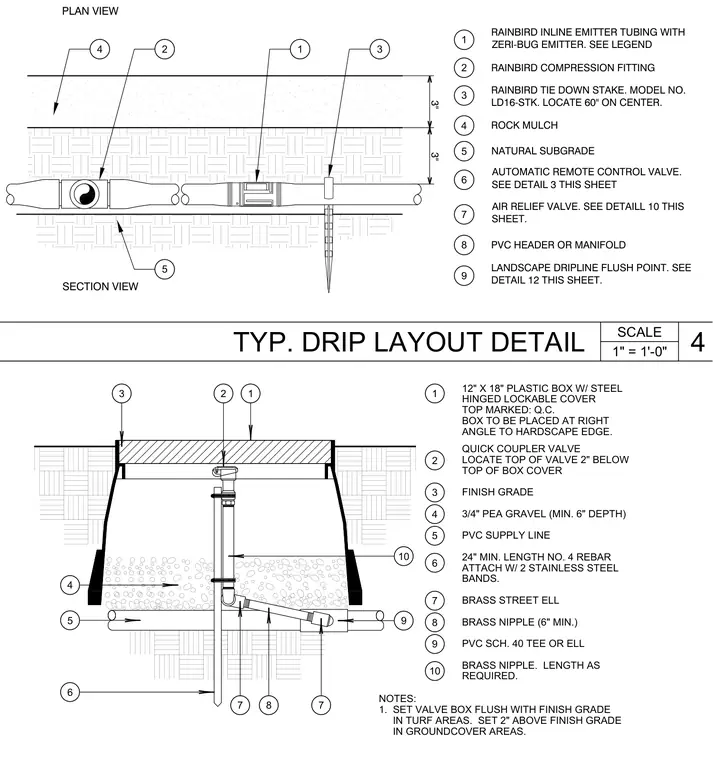

A quick coupler valve and a typical drip layout detail for landscape irrigation systems. The quick coupler valve connects to a PVC supply line using brass nipples, brass street elbows, and a PVC schedule 40 tee or elbow. The assembly sits inside a twelve by eighteen inch plastic box with a steel hinged lockable cover, placed over a minimum six-inch depth of three-quarter-inch pea gravel. A twenty-four-inch minimum length number four rebar stake is attached to the supply piping using two stainless steel bands for vertical support. The valve box is set flush with the finish grade in turf areas and two inches above finish grade in groundcover areas, with the top of the valve located two inches below the top of the box cover. Additionally, a plan and section view show inline emitter tubing with zeri-bug emitters tied down with stakes at sixty inches on center over a natural subgrade and rock mulch.
1 3 2 4 5 6 10 8 7 7 9 1 2 3 4 5 7 8 9 6 10 QUICK COUPLER VALVE LOCATE TOP OF VALVE 2" BELOW TOP OF BOX COVER FINISH GRADE 3/4" PEA GRAVEL (MIN. 6" DEPTH) PVC SUPPLY LINE 24" MIN. LENGTH NO. 4 REBAR ATTACH W/ 2 STAINLESS STEEL BANDS. BRASS STREET ELL BRASS NIPPLE (6" MIN.) PVC SCH. 40 TEE OR ELL BRASS NIPPLE. LENGTH AS REQUIRED. SET VALVE BOX FLUSH WITH FINISH GRADE IN TURF AREAS. SET 2" ABOVE FINISH GRADE IN GROUNDCOVER AREAS. NOTES: 1. 12" X 18" PLASTIC BOX W/ STEEL HINGED LOCKABLE COVER BOX TO BE PLACED AT RIGHT ANGLE TO HARDSCAPE EDGE. TOP MARKED: Q.C. 3" SECTION VIEW PLAN VIEW RAINBIRD COMPRESSION FITTING AUTOMATIC REMOTE CONTROL VALVE. SEE DETAIL 3 THIS SHEET NATURAL SUBGRADE RAINBIRD INLINE EMITTER TUBING WITH ZERI-BUG EMITTER. SEE LEGEND AIR RELIEF VALVE. SEE DETAILL 10 THIS SHEET. RAINBIRD TIE DOWN STAKE. MODEL NO. LD16-STK. LOCATE 60" ON CENTER. LANDSCAPE DRIPLINE FLUSH POINT. SEE DETAIL 12 THIS SHEET. PVC HEADER OR MANIFOLD ROCK MULCH 3 1 2 4 5 1 2 3 4 5 6 7 8 9 3" SCALE TYP. DRIP LAYOUT DETAIL 1" = 1'-0" 4
