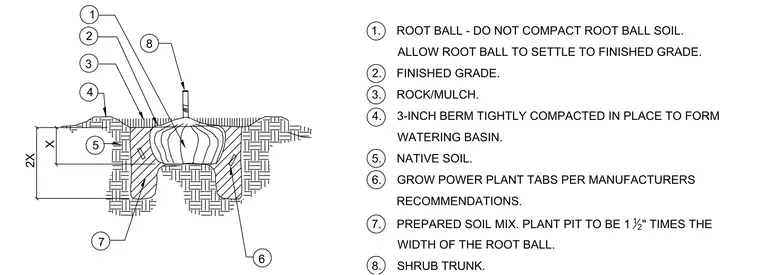

The shrub trunk emerges above a root ball set in native soil surrounded by a prepared soil mix pit sized one and one-half times the width of the root ball. The root ball soil remains uncompacted to settle naturally to the finished grade. A three-inch berm is tightly compacted in place to form a watering basin at the surface. Rock or mulch covers the planting area, and grow power plant tabs are installed per manufacturer recommendations within the soil mix.
2 4 3 1 8 6 X 2X 7 5 1. ROOT BALL - DO NOT COMPACT ROOT BALL SOIL. ALLOW ROOT BALL TO SETTLE TO FINISHED GRADE. 2. FINISHED GRADE. 3. ROCK/MULCH. 4. 3-INCH BERM TIGHTLY COMPACTED IN PLACE TO FORM WATERING BASIN. 5. NATIVE SOIL. 6. GROW POWER PLANT TABS PER MANUFACTURERS RECOMMENDATIONS. 7. PREPARED SOIL MIX. PLANT PIT TO BE 1 12 " TIMES THE WIDTH OF THE ROOT BALL. 8. SHRUB TRUNK.
