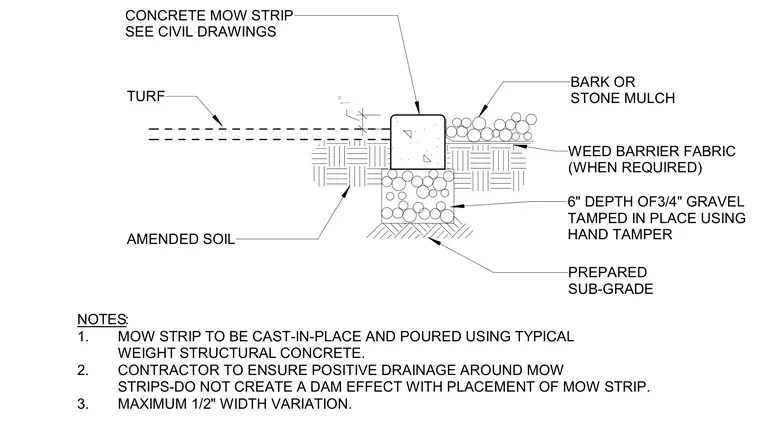

A cast-in-place structural concrete mow strip is bedded on a six-inch depth of three-quarter-inch gravel tamped into the prepared sub-grade. The assembly separates turf on one side from amended soil finished with bark or stone mulch over weed barrier fabric on the other. Positive drainage is maintained around the mow strip to avoid creating a dam effect, allowing a maximum one-half-inch width variation.
TURF CONCRETE MOW STRIP SEE CIVIL DRAWINGS BARK OR STONE MULCH WEED BARRIER FABRIC (WHEN REQUIRED) AMENDED SOIL NOTES : 1. MOW STRIP TO BE CAST-IN-PLACE AND POURED USING TYPICAL WEIGHT STRUCTURAL CONCRETE. 2. CONTRACTOR TO ENSURE POSITIVE DRAINAGE AROUND MOW STRIPS-DO NOT CREATE A DAM EFFECT WITH PLACEMENT OF MOW STRIP. 3. MAXIMUM 1/2" WIDTH VARIATION. PREPARED SUB-GRADE 6" DEPTH OF3/4" GRAVEL TAMPED IN PLACE USING HAND TAMPER 1"
