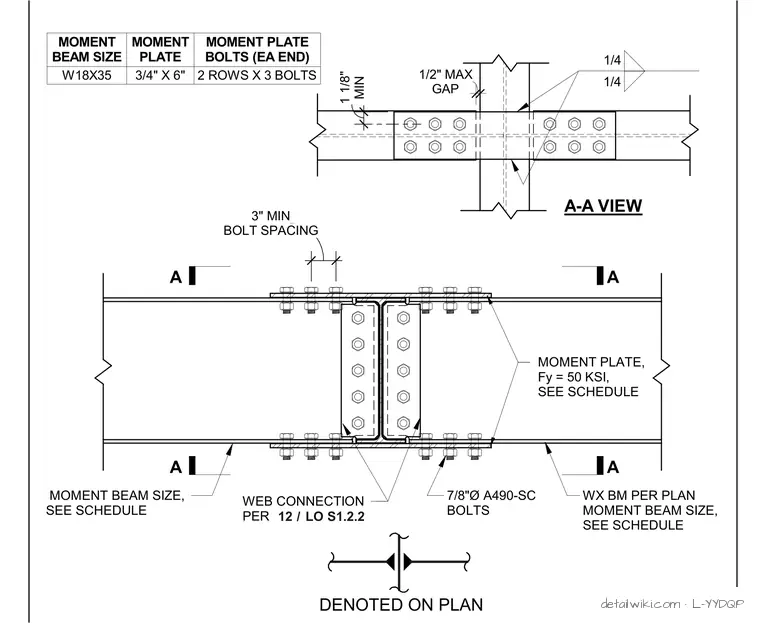

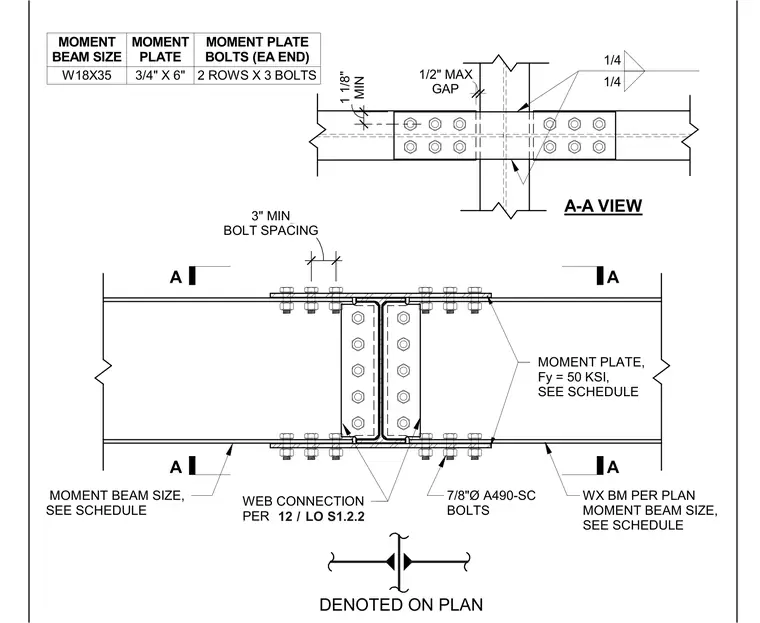

Two structural steel wide-flange beams meet at a moment connection utilizing top and bottom moment plates fabricated from Fy = 50 KSI steel sized per schedule. The beam flanges are tied across the joint with moment plates secured by seven-eighths inch diameter A490-SC slip-critical bolts configured with two rows of three bolts on each end and a minimum three-inch bolt spacing. A web connection featuring specified bolts ties the vertical webs together, leaving a half-inch maximum gap between beam ends. Fillet welds of quarter-inch size connect the plates according to the engineering design.
WX BM PER PLAN MOMENT BEAM SIZE, SEE SCHEDULE MOMENT BEAM SIZE, SEE SCHEDULE MOMENT PLATE, Fy = 50 KSI, SEE SCHEDULE BOLT SPACING 3" MIN 7/8"Ø A490-SC BOLTS WEB CONNECTION PER / 12 LO S1.2.2 A A A A DENOTED ON PLAN MIN 1 1/8" 1/4 1/4 A-A VIEW GAP 1/2" MAX USE PLATE - Fy = 50 KSI; MOMENT BEAM SIZE MOMENT PLATE MOMENT PLATE BOLTS (EA END) W18X35 3/4" X 6" 2 ROWS X 3 BOLTS
