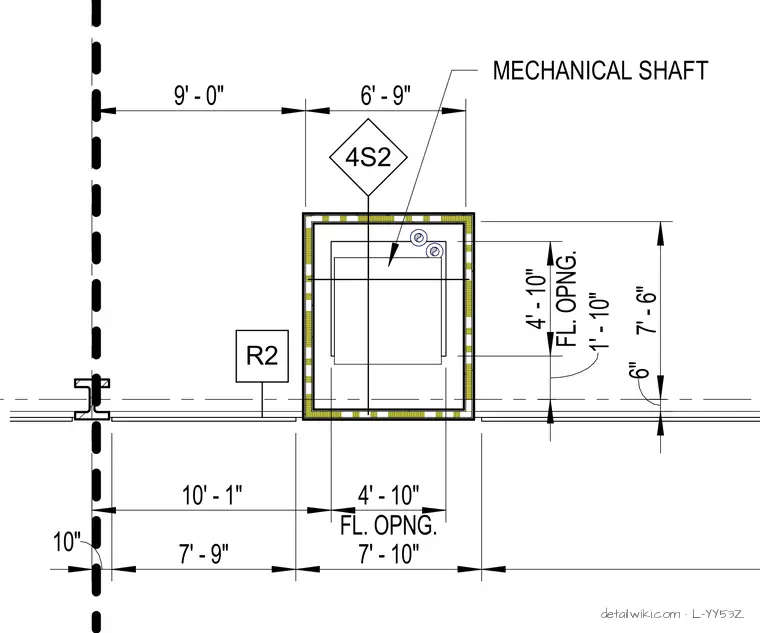

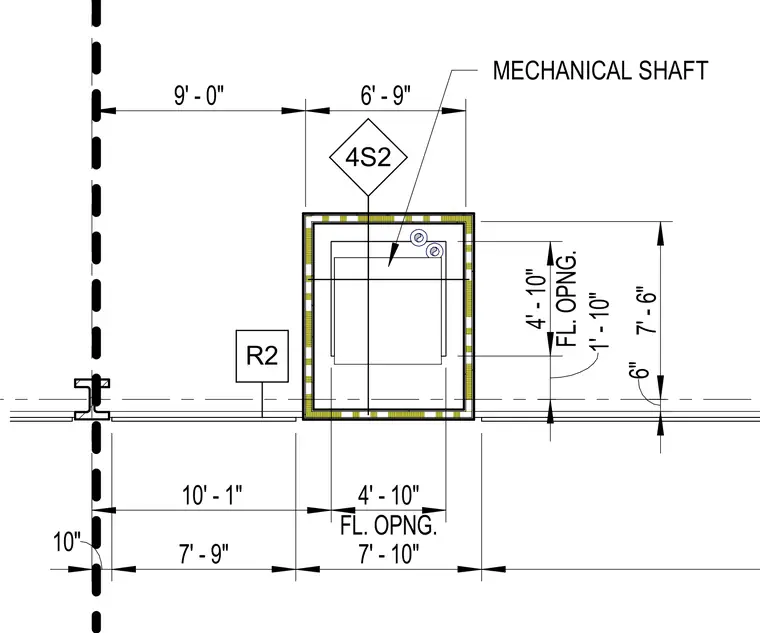

This plan view details a mechanical shaft floor opening with overall dimensions of 7 feet 10 inches by 7 feet 6 inches and a floor opening size of 4 feet 10 inches. The shaft is located at a distance of 10 feet 1 inch and 9 feet 0 inches from the structural grid line. Dimension strings provide precise layout positioning relative to adjacent structural framing members and floor construction.
FL. OPNG. 4' - 10" 1' - 10" 10" 7' - 9" 7' - 10" 4S2 R2 MECHANICAL SHAFT 10' - 1" FL. OPNG. 4' - 10" 7' - 6" 6" 9' - 0" 6' - 9"
