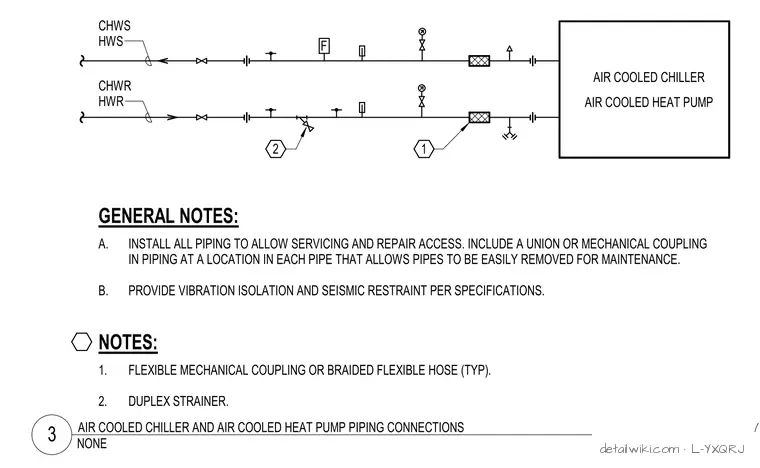

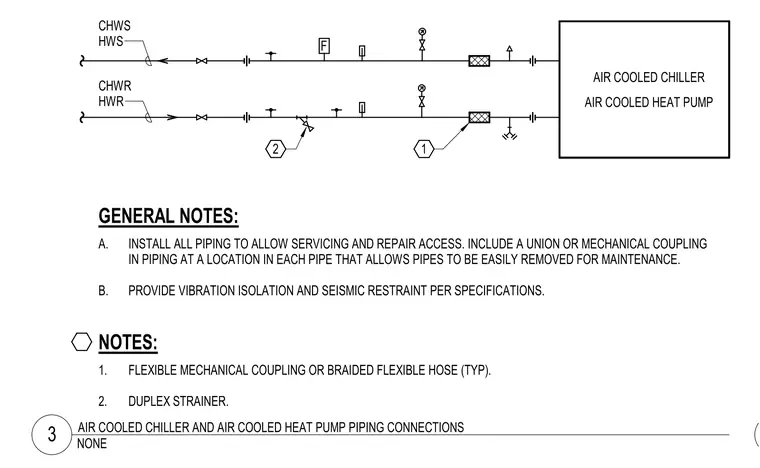

Chilled water supply and return lines connect to an air-cooled chiller and air-cooled heat pump with designated flexible mechanical couplings or braided flexible hoses typically provided at equipment connections. A duplex strainer is incorporated into the piping loop along with unions or mechanical couplings positioned to allow pipes to be easily removed for maintenance and servicing access. All piping installations must provide vibration isolation and seismic restraint per specifications.
A. INSTALL ALL PIPING TO ALLOW SERVICING AND REPAIR ACCESS. INCLUDE A UNION OR MECHANICAL COUPLING IN PIPING AT A LOCATION IN EACH PIPE THAT ALLOWS PIPES TO BE EASILY REMOVED FOR MAINTENANCE. B. PROVIDE VIBRATION ISOLATION AND SEISMIC RESTRAINT PER SPECIFICATIONS. GENERAL NOTES: F AIR COOLED CHILLER CHWS HWS CHWR HWR 1. FLEXIBLE MECHANICAL COUPLING OR BRAIDED FLEXIBLE HOSE (TYP). 2. DUPLEX STRAINER. NOTES: 1 AIR COOLED HEAT PUMP 2 NONE 3 AIR COOLED CHILLER AND AIR COOLED HEAT PUMP PIPING CONNECTIONS
