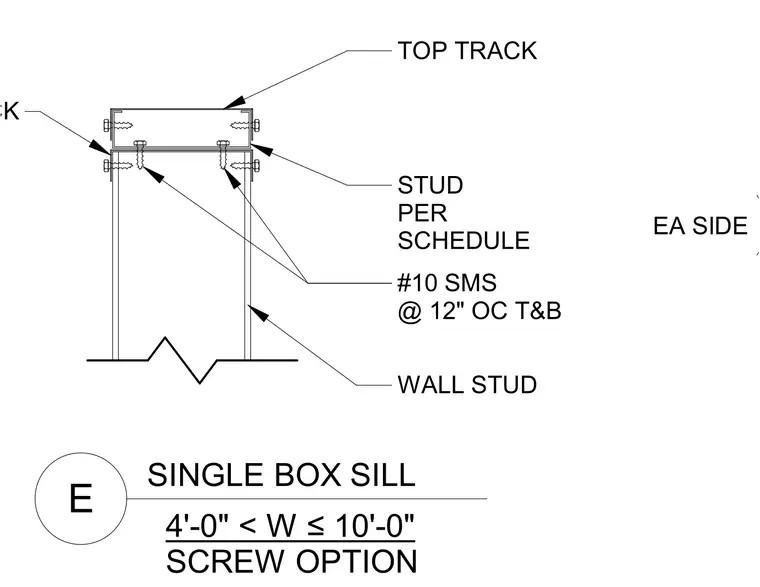

A cold-formed steel wall stud is connected to a top track using number ten self-tapping sheet metal screws spaced at twelve inches on center top and bottom. Additional screw options are provided on each side for wall widths between four feet and ten feet.
STUD PER SCHEDULE #10 SMS @ 12" OC T&B TOP TRACK WALL STUD 4'-0" < W ≤10'-0" SCREW OPTION TOP TRACK EA SIDE E SINGLE BOX SILL
