Landscape · L-YX9J2

Drip Remote Control Valve Assembly

Materials

Steel Stainless Steel Brick

Elements

Stairs Waterproofing / Flashing Roof / Floor Openings

Connections

Bolted Connection

About this detail

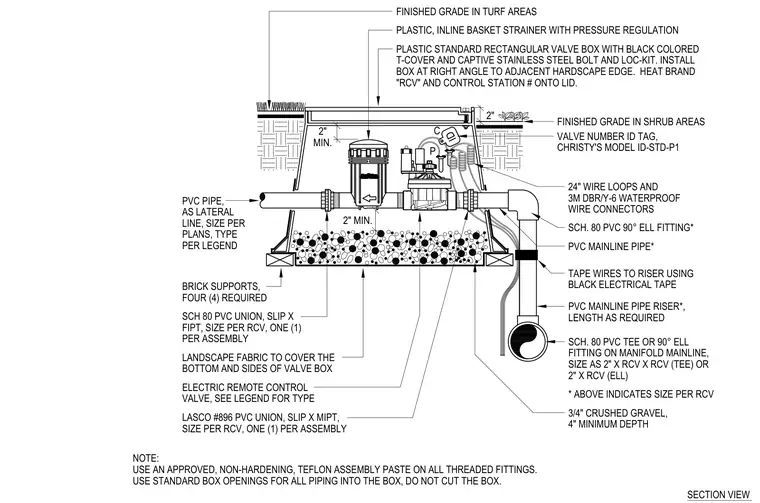

An electric remote control valve is housed inside a standard rectangular plastic valve box with a black cover and captive stainless steel bolt. The box sits on a four-inch minimum depth bed of three-quarter-inch crushed gravel supported by four brick corners, with landscape fabric covering the bottom and sides. A PVC mainline pipe riser connects to the system via a schedule 80 PVC tee or ninety-degree ell fitting, with control wires taped to the riser using black electrical tape. Waterproof wire connectors secure twenty-four-inch wire loops to the valve, which features an inline basket strainer with pressure regulation and an identification tag. Schedule 80 PVC unions connect the valve assembly to lateral PVC piping sized per plan. All threaded fittings are sealed with an approved non-hardening Teflon assembly paste, and piping enters the box through standard factory openings.
