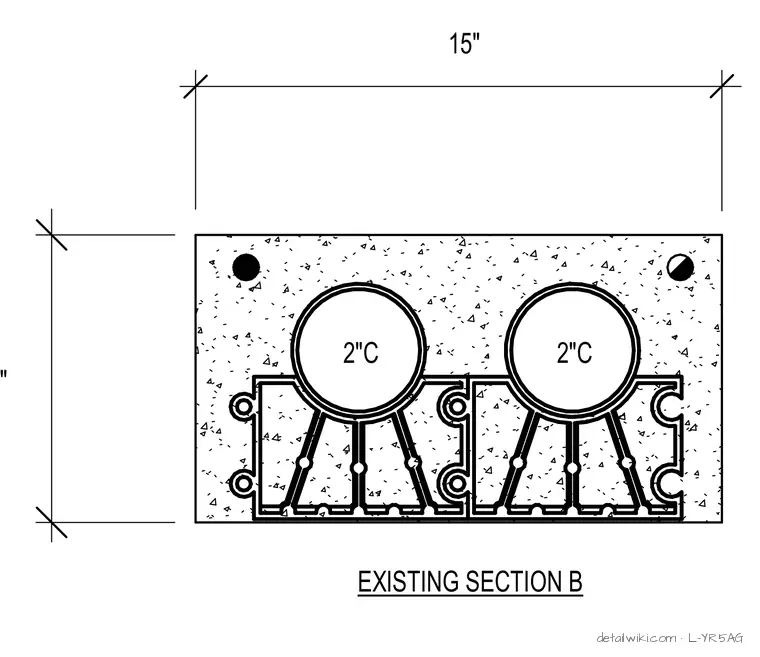

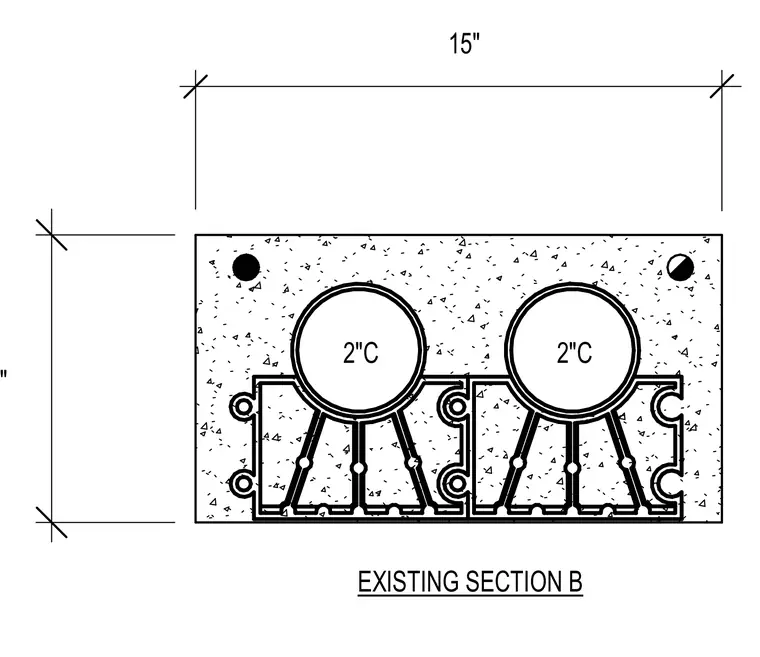

An existing concrete section measures fifteen inches wide by ten inches high, housing two two-inch conduits. The assembly incorporates embedded profiles within the concrete matrix, complete with reinforcing elements near the top corners. Dimensions indicate a fifteen-inch horizontal span and a ten-inch vertical height.
