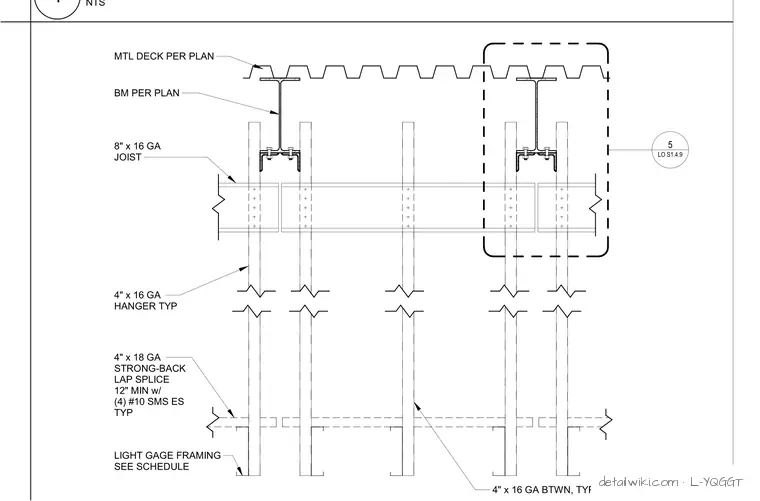

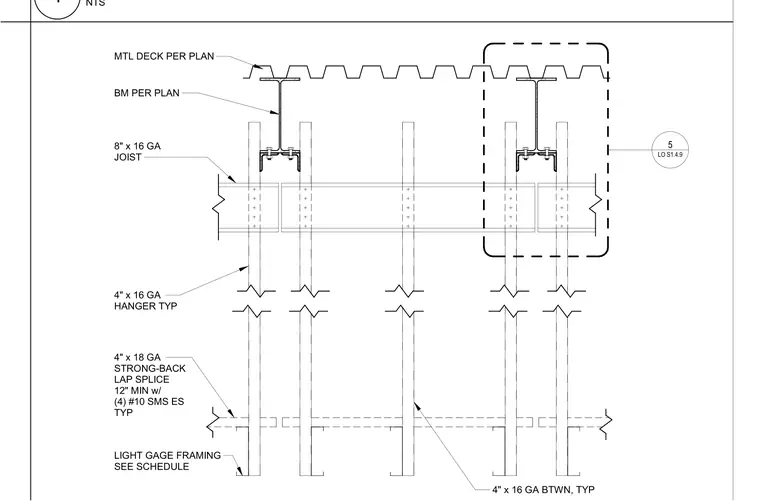

Cold-formed steel 4-inch by 16-gauge hangers support an 8-inch by 16-gauge joist beam, which is suspended from structural steel beams located beneath a metal deck sized per plan. Additional 4-inch by 16-gauge members are positioned between hangers as typical. A 4-inch by 18-gauge strong-back features a lap splice with a 12-inch minimum length, fastened using four number 10 self-tapping metal screws each side typical. Light gauge framing is provided per schedule.
4" x 16 GA HANGER TYP 4" x 16 GA BTWN, TYP LIGHT GAGE FRAMING SEE SCHEDULE 4" x 18 GA STRONG-BACK LAP SPLICE 12" MIN w/ (4) #10 SMS ES TYP 8" x 16 GA JOIST BM PER PLAN MTL DECK PER PLAN LO S1.4.9 5 NTS 1
