Concrete paving slabs meet at an isolation joint doweled with sleeves spaced at eighteen inches on center. A joint filler strip with a backer rod and sealant fills the three-eighths-inch gap, finished with a typical one-quarter-inch radius at the edge. Mason sand is installed on top of the sealant before the sealant cures. The concrete paving rests on aggregate base and compacted subgrade.

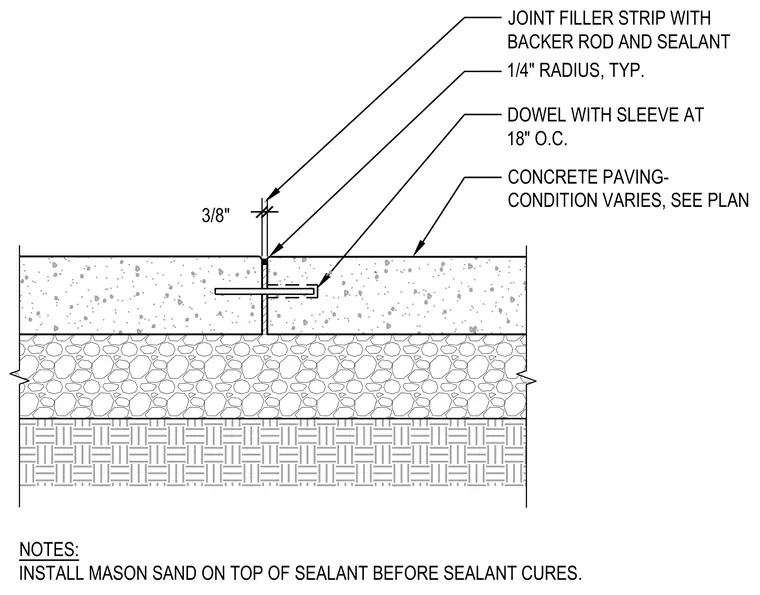

NOTES: INSTALL MASON SAND ON TOP OF SEALANT BEFORE SEALANT CURES. JOINT FILLER STRIP WITH BACKER ROD AND SEALANT 1/4" RADIUS, TYP. DOWEL WITH SLEEVE AT 18" O.C. CONCRETE PAVING- CONDITION VARIES, SEE PLAN 3/8"
