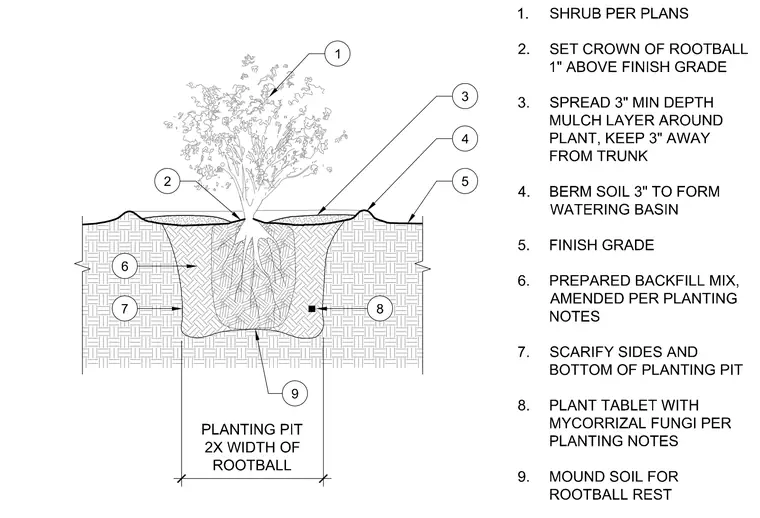

The planting pit is excavated to twice the width of the rootball with a scarified bottom and sides, featuring a mounded soil rest for the rootball. The shrub crown is set one inch above the finish grade within a prepared backfill mix amended per planting notes. Plant tablets with mycorrhizal fungi are placed in the pit alongside the rootball. A three-inch minimum depth mulch layer is spread around the plant while keeping a three-inch clearance from the trunk. Soil is bermed three inches high to form a watering basin at the finish grade.
1. SHRUB PER PLANS 2. SET CROWN OF ROOTBALL 1" ABOVE FINISH GRADE 3. SPREAD 3" MIN DEPTH MULCH LAYER AROUND PLANT, KEEP 3" AWAY FROM TRUNK 4. BERM SOIL 3" TO FORM WATERING BASIN 5. FINISH GRADE 6. PREPARED BACKFILL MIX, AMENDED PER PLANTING NOTES 7. SCARIFY SIDES AND BOTTOM OF PLANTING PIT 8. PLANT TABLET WITH MYCORRIZAL FUNGI PER PLANTING NOTES 9. MOUND SOIL FOR ROOTBALL REST 1 2 3 4 5 8 9 PLANTING PIT 2X WIDTH OF ROOTBALL 6 7
