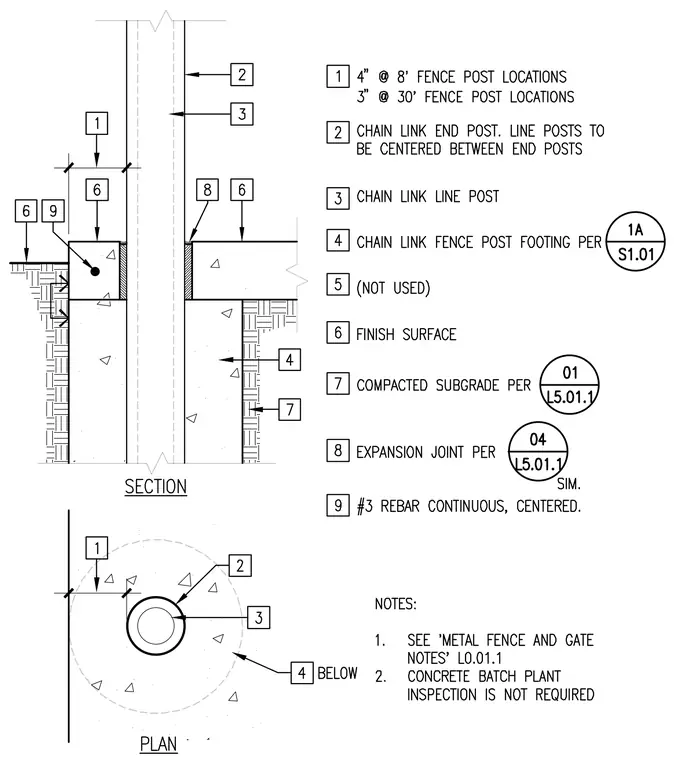

A chain link line post or end post is embedded within a concrete fence post footing, bearing on a compacted subgrade. An expansion joint with sealant separates the footing from the adjacent finish surface. A continuous centered number three rebar runs through the concrete edge beam. Fence post locations and footing details are referenced to structural sheets.
