A concrete slab bears on compacted subgrade with a thickened edge adjacent to a planting area. The planting area is filled with two inches of mulch over planting soil. A control joint is cut to one-fourth the depth of the slab, finished with a one-quarter-inch rounded radius edge typical. The concrete surface requires no shiners or tool marks.

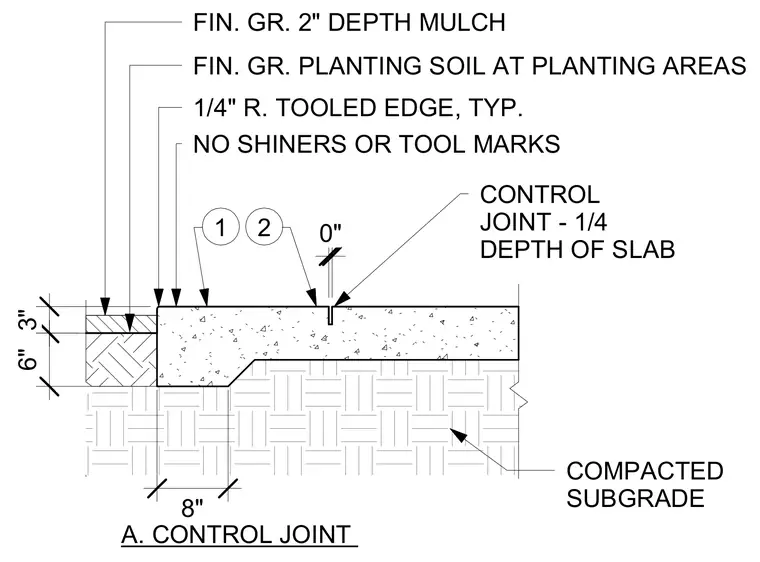

1 FIN. GR. 2" DEPTH MULCH FIN. GR. PLANTING SOIL AT PLANTING AREAS 1/4" R. TOOLED EDGE, TYP. A. CONTROL JOINT 6" 3" 8" NO SHINERS OR TOOL MARKS CONTROL JOINT - 1/4 DEPTH OF SLAB 0" 2 COMPACTED SUBGRADE
