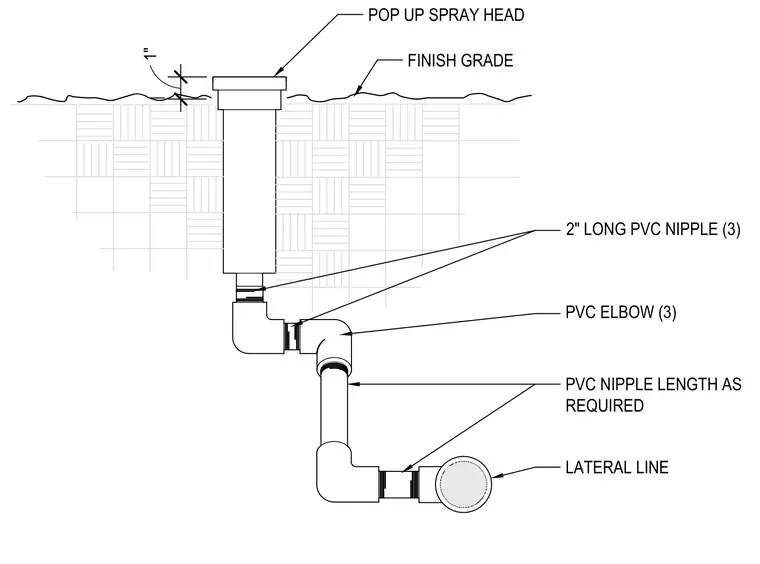

A pop-up irrigation spray head is mounted at finish grade with the top set one inch above the surrounding soil. The head connects downward to a series of two-inch long polyvinyl chloride nipples and polyvinyl chloride elbows that provide vertical and horizontal offset adjustments. A polyvinyl chloride nipple of length as required connects the lower elbow assembly back to the main lateral water supply line.
LATERAL LINE PVC NIPPLE LENGTH AS REQUIRED PVC ELBOW (3) 2" LONG PVC NIPPLE (3) FINISH GRADE POP UP SPRAY HEAD 1"
