Architectural · L-YHCHV

Wood Cladding Wall Miter

Materials

Concrete Reinforced Concrete Timber / Wood

Elements

Walls Facades / Cladding Roofs Arches Insulation Drainage Reinforcing

Connections

Welded Connection

About this detail

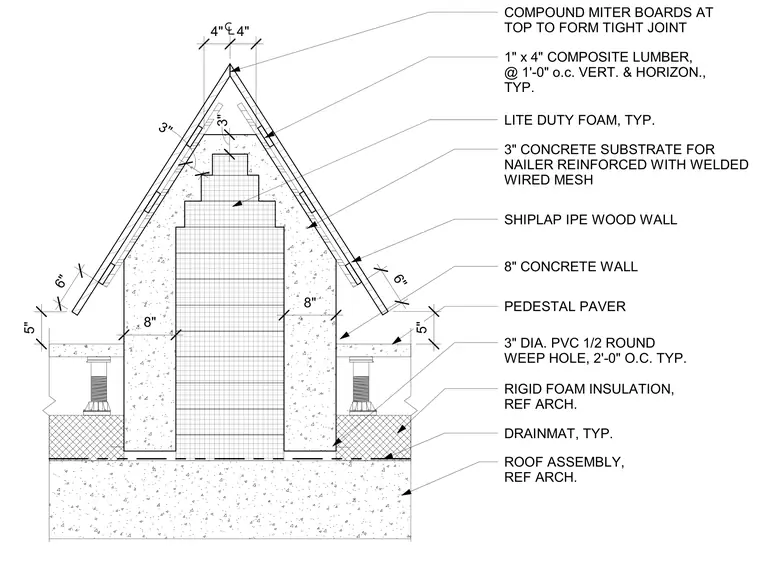

An eight-inch concrete wall serves as the primary structural core, finished with a stepped concrete substrate for a nailer reinforced with welded wire mesh. The exterior features shiplap Ipe wood wall cladding backed by one-by-four-inch composite lumber spaced at one foot on center vertically and horizontally, with lite-duty foam installed typically. At the peak, compound miter boards meet to form a tight joint. The base of the assembly sits on a roof assembly with rigid foam insulation, a drainmat, pedestal pavers, and three-inch-diameter PVC half-round weep holes spaced at two feet on center.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
