Electrical · L-YE9Z2

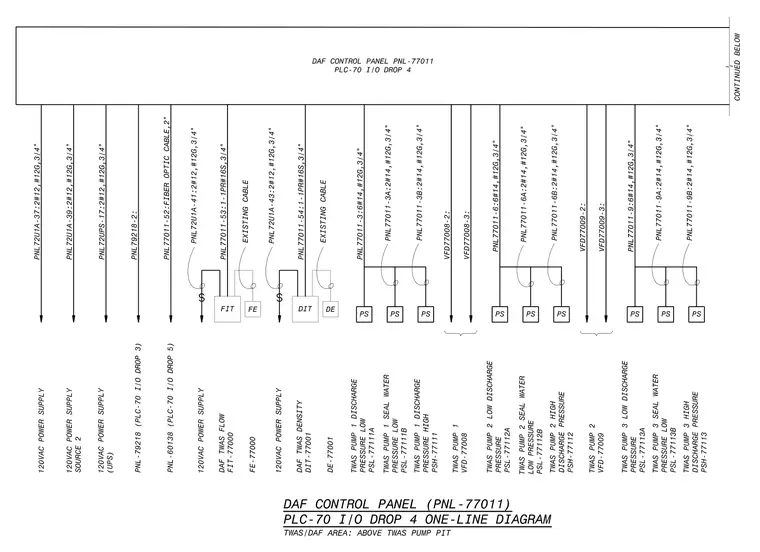

DAF Control Panel One-Line Diagram

Materials

About this detail

Power supply and signal connections serve the DAF control panel and associated equipment located above the TWAS pump pit. Circuits originate from panels PNL-72U1A and PNL-72UPS, including 120VAC power feeds, uninterruptible power supplies, and fiber optic cable runs. Instrumentation connections include flow transmitters, density transmitters, pressure switches, and variable frequency drives for TWAS pumps 1 through 3.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
