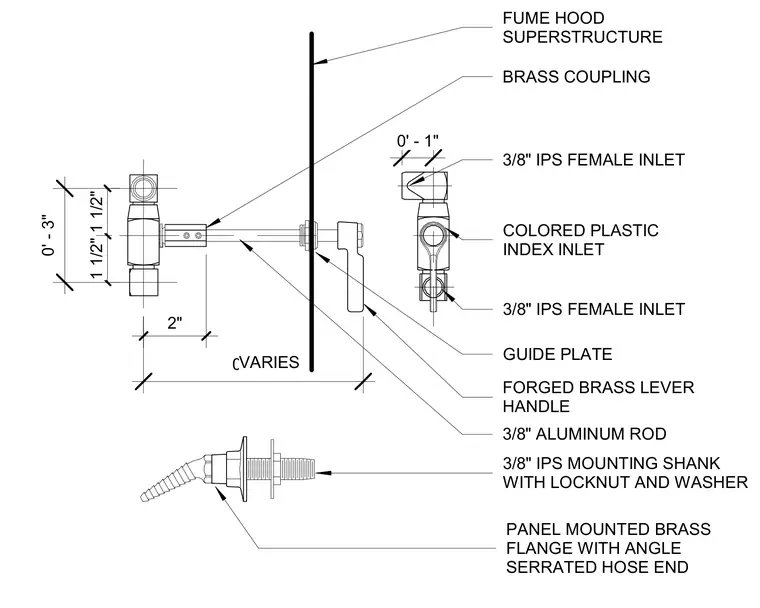

A panel-mounted valve assembly attaches to a fume hood superstructure. The unit features a forged brass lever handle connected via a three-eighths-inch aluminum rod to a brass coupling and female inlets. A panel-mounted brass flange with an angle serrated hose end secures through the panel using a three-eighths-inch iron pipe size mounting shank with a locknut and washer.
PANEL MOUNTED BRASS FLANGE WITH ANGLE SERRATED HOSE END 3/8" IPS MOUNTING SHANK WITH LOCKNUT AND WASHER FORGED BRASS LEVER HANDLE GUIDE PLATE 3/8" IPS FEMALE INLET COLORED PLASTIC INDEX INLET 3/8" IPS FEMALE INLET 3/8" ALUMINUM ROD BRASS COUPLING FUME HOOD SUPERSTRUCTURE 1 1/2" 1 1/2" 0' - 3" 0' - 7" 2" 0' - 1" VARIES
