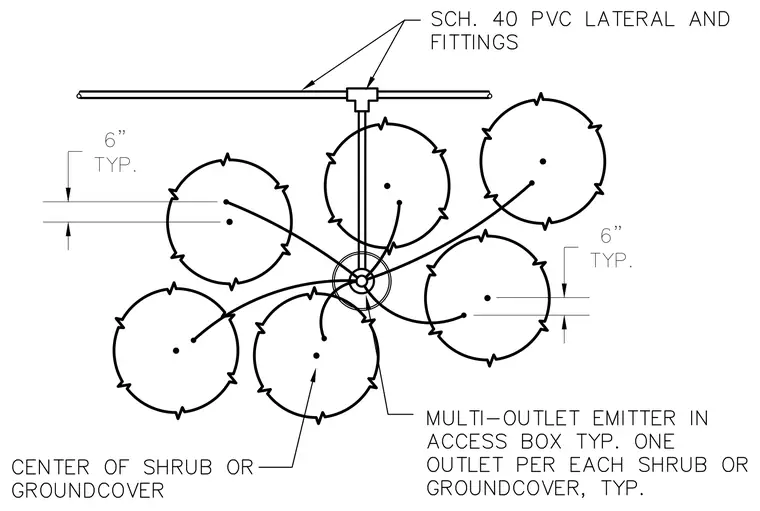

A schedule 40 PVC lateral and fittings feed a multi-outlet emitter housed in an access box typically, providing one outlet per each shrub or groundcover. Flexible distribution tubing extends outward from the central emitter to the center of each shrub or groundcover with a typical six-inch spacing.
