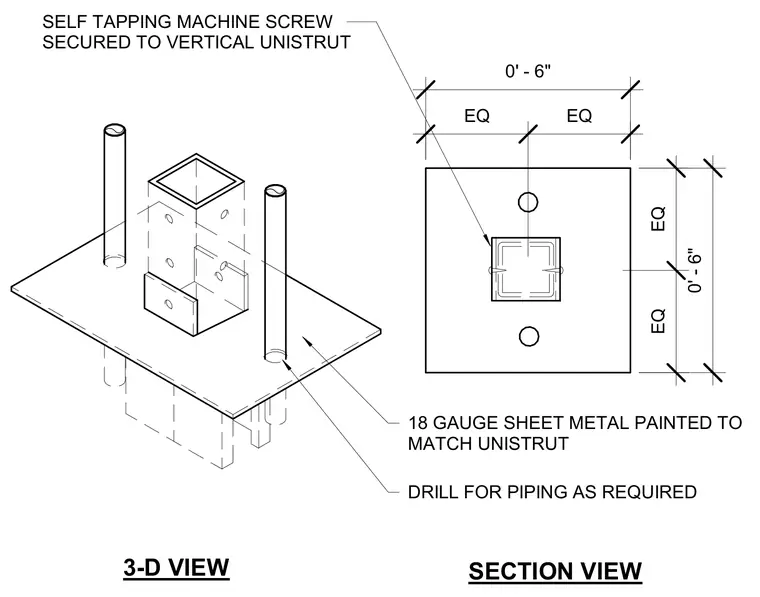

An eighteen-gauge sheet metal escutcheon plate is finished with paint to match the adjacent Unistrut channel. The square plate measures six inches by six inches with equal centering dimensions and is drilled for piping penetrations as required. Self-tapping machine screws secure the plate directly to the vertical Unistrut support.
SECTION VIEW 3-D VIEW 18 GAUGE SHEET METAL PAINTED TO MATCH UNISTRUT DRILL FOR PIPING AS REQUIRED SELF TAPPING MACHINE SCREW SECURED TO VERTICAL UNISTRUT 0' - 6" EQ EQ 0' - 6" EQ EQ
