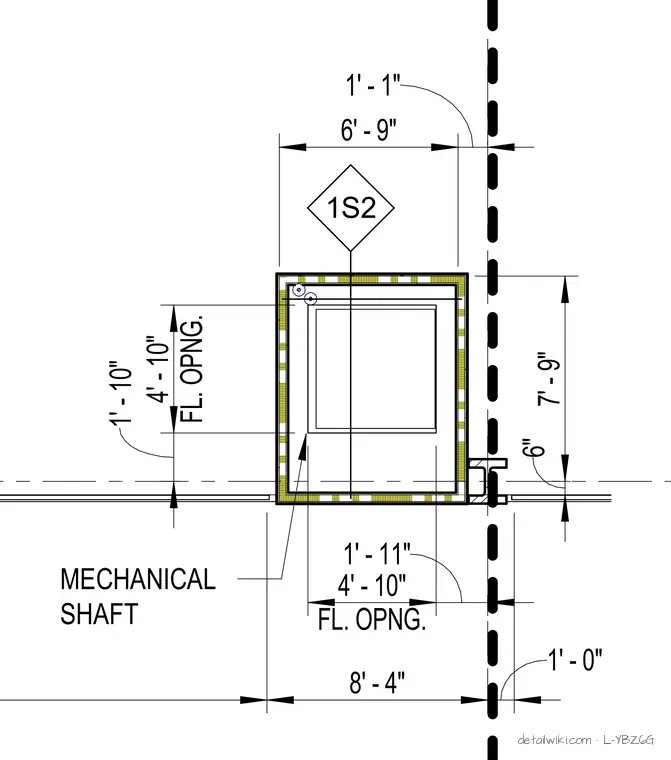

The mechanical shaft floor opening plan detail shows a shaft measuring four feet ten inches by four feet ten inches, with total dimensions extending to eight feet four inches by seven feet nine inches. The floor opening is bounded by structural elements and dimensioned relative to grid and reference lines. Offset dimensions locate the shaft edges at one foot one inch and one foot ten inches from baseline references.
8' - 4" 1' - 0" 1S2 MECHANICAL SHAFT FL. OPNG. 4' - 10" 1' - 10" FL. OPNG. 4' - 10" 1' - 11" 6' - 9" 1' - 1" 7' - 9" 6"
