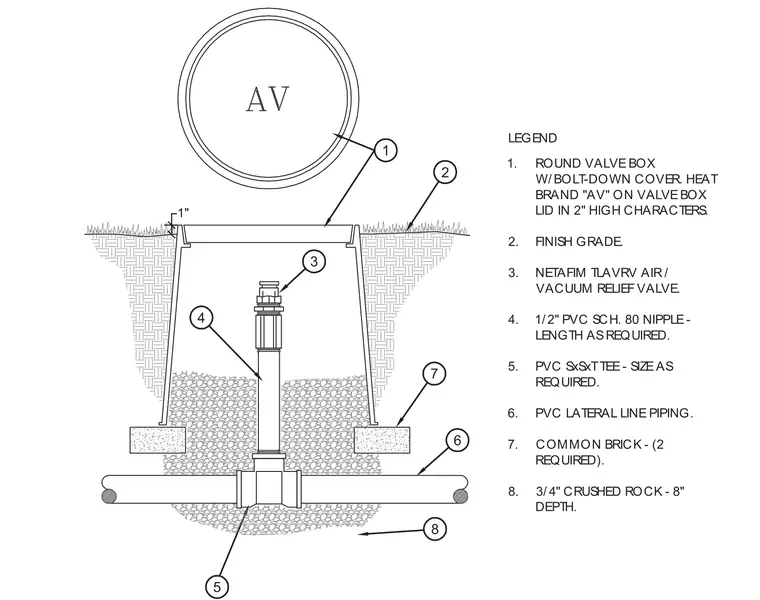

An air and vacuum relief valve assembly connects to a PVC lateral line piping through a PVC solvent-weld tee and an eight-inch depth of three-quarter-inch crushed rock bedding. A Netafim air and vacuum relief valve mounts vertically on a half-inch PVC schedule 80 nipple threaded into the tee. The entire assembly sits within a round valve box with a bolt-down cover, featuring a heat-branded "AV" inscription on the lid in two-inch high characters. Two common bricks support the base of the valve box. The lid finishes flush to one inch above the surrounding finish grade.
1. ROUND VALVE BOX W/BOLT-DOWN COVER. HEAT BRAND "AV" ON VALVE BOX LID IN 2" HIGH CHARACTERS. 2. FINISH GRADE. 3. NETAFIM TLAVRV AIR / VACUUM RELIEF VALVE. 4. 1/2" PVC SCH. 80 NIPPLE - LENGTH AS REQUIRED. 5. PVC SxSxT TEE - SIZE AS REQUIRED. 6. PVC LATERAL LINE PIPING. 7. COMMON BRICK - (2 REQUIRED). 8. 3/4" CRUSHED ROCK - 8" DEPTH. 1" LEGEND 1 2 3 4 5 6 7 8
