About this detail

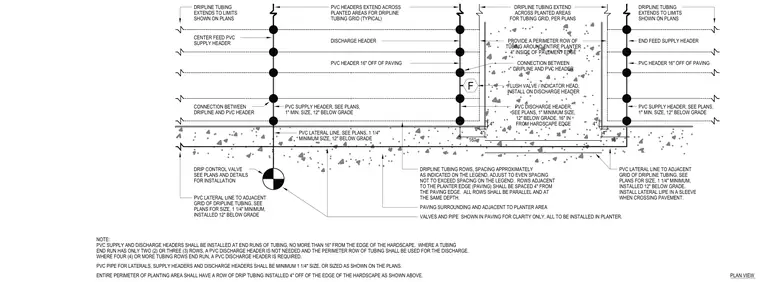

An underground drip irrigation system is laid out within a planted area adjacent to hardscape paving. The system incorporates center-feed and end-feed PVC supply headers alongside PVC discharge headers installed twelve inches below grade. Dripline tubing rows are spaced evenly across the planted area, with a perimeter row positioned four inches inside the pavement edge. PVC lateral lines are installed at a minimum size of one and one-quarter inches and placed inside a protective sleeve when crossing pavement. A flush valve with an indicator head is installed on the discharge header, and all supply and discharge headers are positioned no more than sixteen inches from the edge of the hardscape.

PLAN VIEW INSTALL LATERAL LIPE IN A SLEEVE WHEN CROSSING PAVEMENT. 1" MIN. SIZE, 12" BELOW GRADE PVC SUPPLY HEADER, SEE PLANS, VALVES AND PIPE SHOWN IN PAVING FOR CLARITY ONLY, ALL TO BE INSTALLED IN PLANTER. DRIPLINE AND PVC HEADER CONNECTION BETWEEN PAVING SURROUNDING AND ADJACENT TO PLANTER AREA TO THE PLANTER EDGE (PAVING) SHALL BE SPACED 4" FROM NOT TO EXCEED SPACING ON THE LEGEND. ROWS ADJACENT AS INDICATED ON THE LEGEND, ADJUST TO EVEN SPACING DRIPLINE TUBING ROWS, SPACING APPROXIMATELY SHOWN ON PLANS EXTENDS TO LIMITS DRIPLINE TUBING PLANS FOR SIZE, 1 1/4" MINIMUM, GRID OF DRIPLINE TUBING, SEE PVC LATERAL LINE TO ADJACENT INSTALL ON DISCHARGE HEADER FLUSH VALVE / INDICATOR HEAD, SHOWN ON PLANS EXTENDS TO LIMITS DRIPLINE TUBING MINIMUM SIZE, 12" BELOW GRADE PVC LATERAL LINE, SEE PLANS, 1 1/4" SEE PLANS, 1" MINIMUM SIZE, PVC DISCHARGE HEADER, FOR INSTALLATION SEE PLANS AND DETAILS DRIP CONTROL VALVE F 1" MIN. SIZE, 12" BELOW GRADE PVC SUPPLY HEADER, SEE PLANS, 12" BELOW GRADE, 16" IN INSTALLED 12" BELOW GRADE. DRIPLINE AND PVC HEADER CONNECTION BETWEEN THE PAVING EDGE. ALL ROWS SHALL BE PARALLEL AND AT THE SAME DEPTH. PLANS FOR SIZE, 1 1/4" MINIMUM, GRID OF DRIPLINE TUBING, SEE PVC LATERAL LINE TO ADJACENT INSTALLED 12" BELOW GRADE END FEED SUPPLY HEADER CENTER FEED PVC SUPPLY HEADER FOR TUBING GRID, PER PLANS ACROSS PLANTED AREAS DRIPLINE TUBING EXTEND TUBING GRID (TYPICAL) PLANTED AREAS FOR DRIPLINE PVC HEADERS EXTEND ACROSS PVC SUPPLY AND DISCHARGE HEADERS SHALL BE INSTALLED AT END RUNS OF TUBING, NO MORE THAN 16" FROM THE EDGE OF THE HARDSCAPE. WHERE A TUBING FROM HARDSCAPE EDGE PROVIDE A PERIMETER ROW OF TUBING AROUND ENTIRE PLANTER 4" 16" 4" 16" 4" INSIDE OF PAVEMENT EDGE 4" DISCHARGE HEADER PVC HEADER 16" OFF OF PAVING PVC HEADER 16" OFF OF PAVING ENTIRE PERIMETER OF PLANTING AREA SHALL HAVE A ROW OF DRIP TUBING INSTALLED 4" OFF OF THE EDGE OF THE HARDSCAPE AS SHOWN ABOVE. 4" PVC PIPE FOR LATERALS, SUPPLY HEADERS AND DISCHARGE HEADERS SHALL BE MINIMUM 1 1/4" SIZE, OR SIZED AS SHOWN ON THE PLANS. END RUN HAS ONLY TWO (2) OR THREE (3) ROWS, A PVC DISCHARGE HEADER IS NOT NEEDED AND THE PERIMETER ROW OF TUBING SHALL BE USED FOR THE DISCHARGE. WHERE FOUR (4) OR MORE TUBING ROWS END RUN, A PVC DISCHARGE HEADER IS REQUIRED. NOTE:
