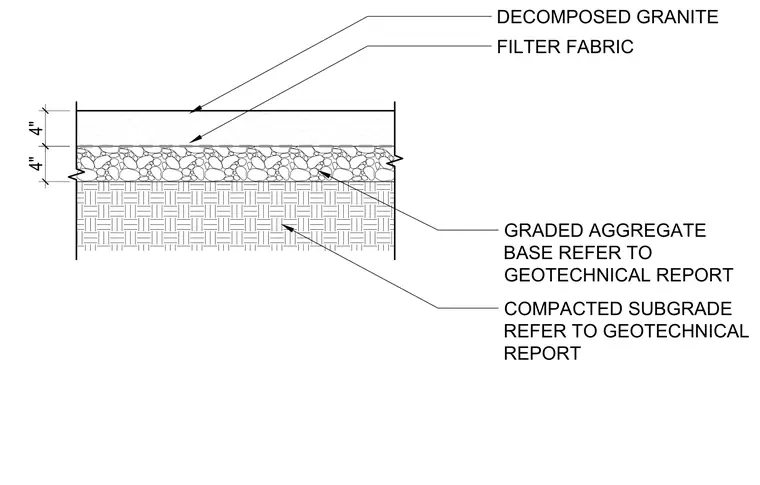

A four-inch graded aggregate base layer rests directly on the compacted subgrade per the geotechnical report. A filter fabric separates the aggregate base from the upper four-inch decomposed granite surface course.
4" 4" DECOMPOSED GRANITE GRADED AGGREGATE BASE REFER TO GEOTECHNICAL REPORT COMPACTED SUBGRADE REFER TO GEOTECHNICAL REPORT FILTER FABRIC
