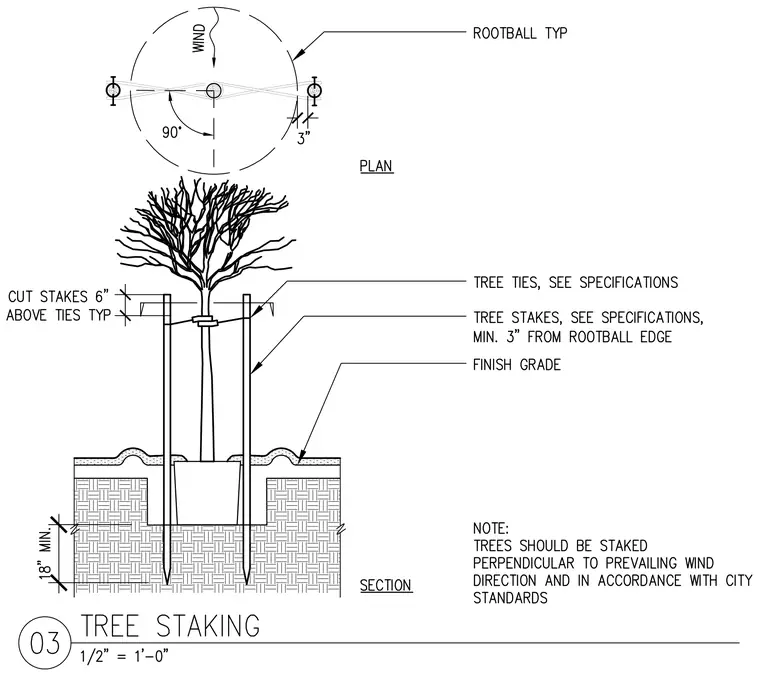

Tree staking detail showing the rootball set into the planting soil with tree stakes driven into undisturbed ground a minimum of 3 inches from the rootball edge. Tree ties secure the trunk to the stakes, with stakes cut 6 inches above the ties typical. The plan view indicates stakes oriented perpendicular to the prevailing wind direction at a 90-degree angle. The section shows stakes penetrating at least 18 inches below the bottom of the rootball excavation into firm subgrade.
